EBA 551 LT

EBA 551 LT

£4,500 Exclusive of VAT

Morecambe, United Kingdom

orWhatsApp:+44 (0) 7884 423 812

Description

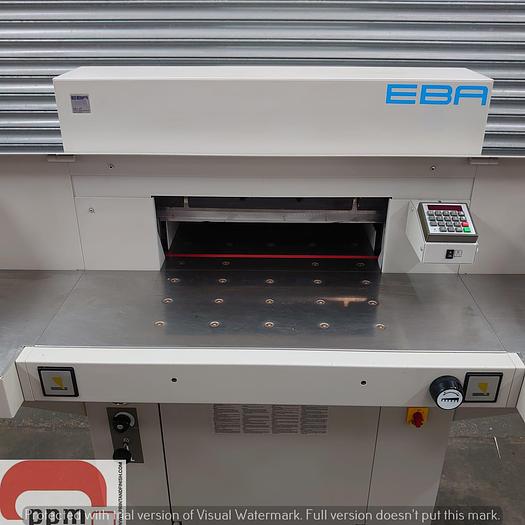

EBA 551 - LT Paper Guillotine (Ideal)


Description

550mm

Air bed

Programable

Guillotine

Light guards



Standard Features:

Hydraulic precision drive for blade and clamping.

Spindle guided electro-mechanical backgauge drive for precise positioning.

Manually operated hand wheel for fine adjustment of backgauge.

Infinitely adjustable clamping pressure with display.

Foot pedal for pre-pressing or cutting line indicator.

Optical cutting line indicator.

Durable stainless steel working surface for front and rear table.

2 x Cutting blades made of high quality HSS steel.

Hydraulic swing cut.

Adjustable blade depth from outside.

Mobile on casters.



Safety Features:

Electronically controlled two-hand safety operation.

Electronically guarded front table area by photocell safety guards.

Rear table area is protected by a sturdy cover.

Automatic return of blade and clamping from every position.

Lockable main switch..

Blade changing device with covered cutting edge.

Side tables at the right and left side.

False clamp plate.



Controlling:

99 programs with 99 steps each.

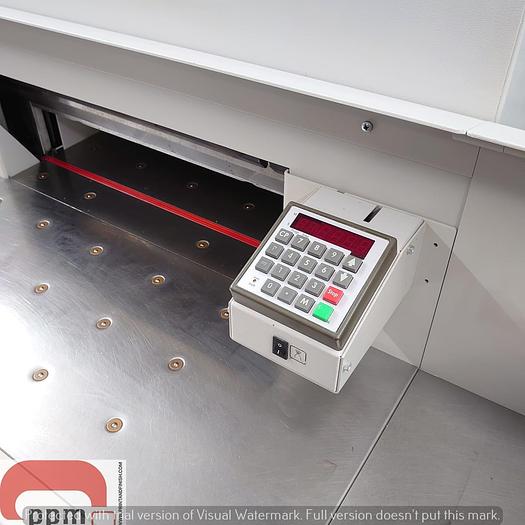

10 button keyboard for setting of measurement.

Electronic digital display with an accuracy of 0.01mm.

Button for reference measurement.

Button for fast reverse movement of backgauge.

Memory key for repeat cuts.

Programmable paper eject function.

Programmable keys for quick usage.

Self-diagnosis system with error indication on display.

Program’s runs automatically. or with “Start” – button.

Change-over between decimal/ inch.


At Promotional Printing Machinery Limited we provide a quick turnaround, which is usually 2-3 days once payment is received depending on the size of your order.


If you require installation we can provide one of our experienced engineers to do this for you at extra cost.


Our UK sales are shipped out using our local haulage company, the items are fully secured to wooden pallets and covered with shrink wrap film to protect them during transport.


Export machines are sealed into strong wood crates that are sourced from sustainable materials, which are collected by our shipping agent and distributed to you by either Air, Road or Sea.


We only accept payment via bank transfer or cash on collection. A VAT invoice will be supplied with the machine. PayPal payment is not accepted.

Specifications

ManufacturerEBA
Model551 LT
ConditionUsed
Stock Number2287
