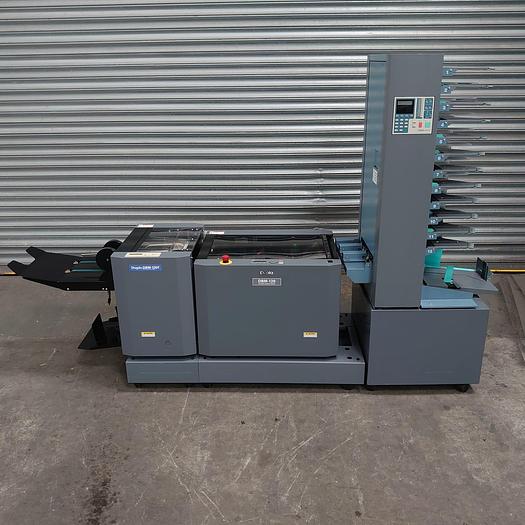

Duplo DFC-12 Collator with DBM120 Bookletmaker and DBM120T Trimmer (#1136)

Duplo DFC-12 Collator with DBM120 Bookletmaker and DBM120T Trimmer (#1136)

Contact us for price

United Kingdom

orWhatsApp:+44 (0) 7884 423 812

Description

Duplo DFC-12 Collator Duplo DBM-120 Bookletmaker Duplo DBM120T Trimmer Duplo DFC-12 Collator Number of Bins: 12 Paper Size (Min./Max.): 5.83″ x 8.27″ to 12.60″ x 17.72″ Feed Bin Capacity: 1.10″ Receive Bin Capacity: 2.56″ to 3.07″ Speed: Up to 70 sets per minute or 4,200 straight stacking sets per hour Programming: Alternating Program (link 2 bins), Interleave Program (slip sheet), Block Program Paper Feed Bin Detections: Misfeed, double-feed, paper jam Error Detections: Paper feed error, conveyance cover open/close, paper receive bin full, bin empty, misfeed, double-feed, paper jam, downstream processing device error, number of interleaves error Duplo DBM-120 Automatic Bookletmaker Features Include - Booklet capacity of up to 20 sheets (100 pages) of 20-lb. stock. - Block capacity of up to 30 sheets of 20-lb stock. - Production speeds of up to 1800 booklets per hour can be achieved. - Programmable with 10 pre-set & three custom sizes - Corner, Side or Regular Booklet Stapling - Can be used used without staple head to fold up to 20 sheets in half - Connects to the Duplo DSF-2000 Set Feeder & DBM-120T Automatic Trimmer. Duplo DBM-120T Automatic Trimmer Features Include - Trim capacity of up to 20 sheets (100 pages) of 20-lb. stock. - Production speeds of up to 2400 booklets per hour can be achieved. - Trim margin of up to 0.79" - Min/Max Booklet Size - 3.94" x 7.87" / 8.86" x 12.60" - Connects to the Duplo DSF-2000 Set Feeder & DBM-120 Bookletmaker. A4 Sheet Speed Max 120 Sheets/Min A4 Booklet Production Max 40 Books/Min A3 Booklet Production Max 30 Books/Min Typical Hourly Production 5 Sheet A4 5800 sheets (= 194 ppm) 5 Sheet A3 4500 sheets (= 300 ppm) Programmes 10 pre-set sizes / 3 custom sizes Sheet Sizes(Min) 279mm x 210mm Sheet Sizes(Max) 457mm x 320mm Booklet Sizes (Min) length 140mm (before trim) x 210mm Booklet Sizes (Max) length 229 (before trim) x width320mm Capacity (80gsm) 20 sheets (with grain) Stitch/Staple Type 2 x Staple (from 2 x 5000 staple cartridge) At Print and FInish we offer a quick turnaround once we have received payment for your item, usually 2 - 3 working days depending on the size of your purchase. If you require installation we can supply one of our experienced engineering team to do this for you at extra cost. Our UK sales are shipped out using our local haulage company, the items are fully secured to wooden pallets and sealed with film to weatherproof them during transport. We are set up to offer worldwide shipment for the print industry, so no matter the size of your order, we will get it to you on time and on budget. Machines are sealed into strong wood crates that are sourced from sustainable materials, which are then collecting by our shipping agent and distributed to you by either Air or Sea, depending on your preference

Specifications

Manufacturerduplo dbm120
ConditionUsed
