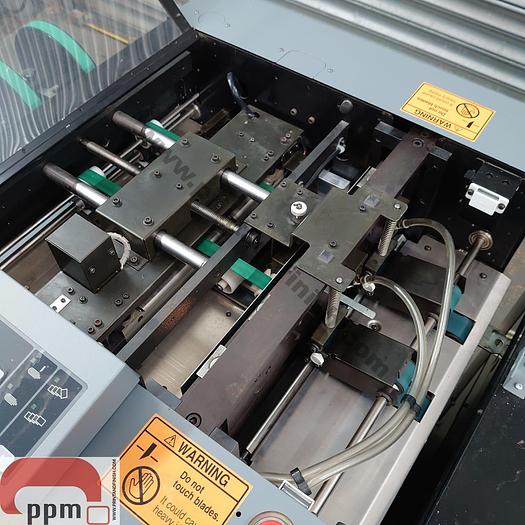

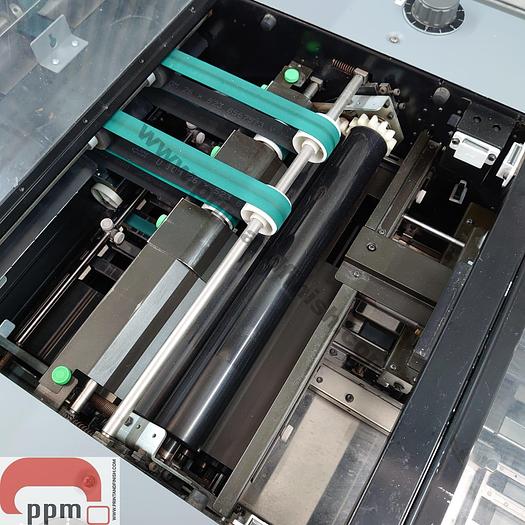

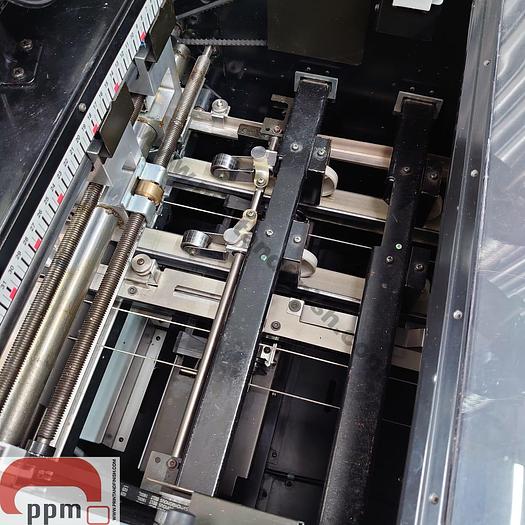

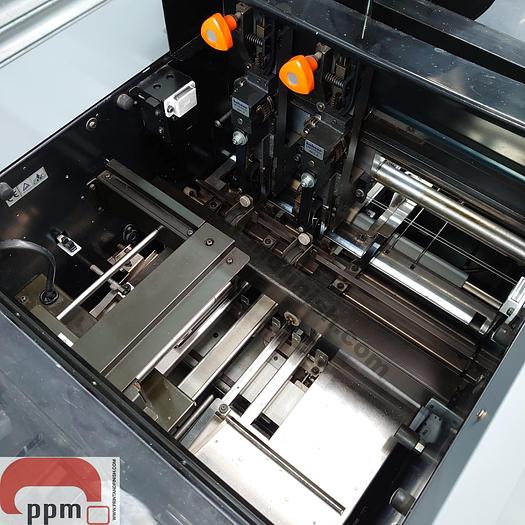

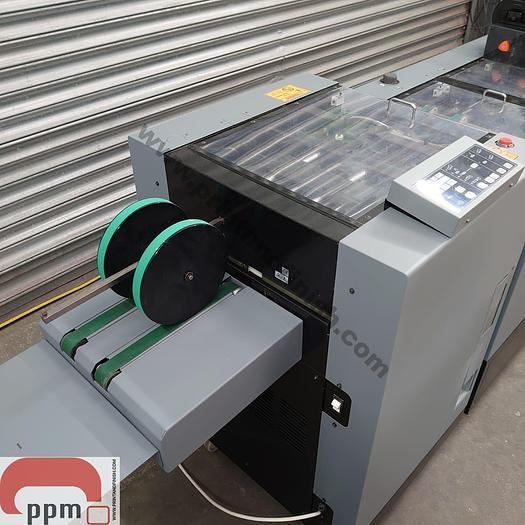

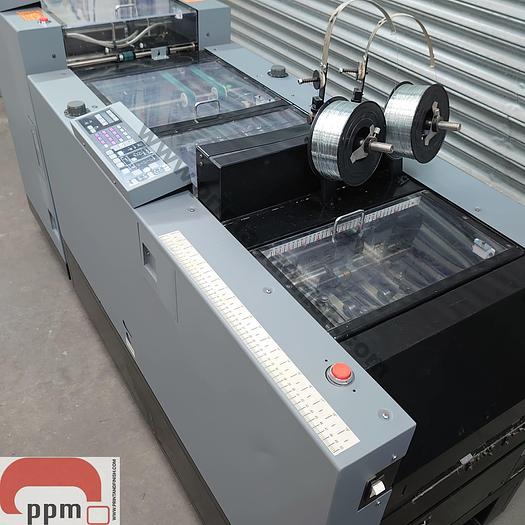

Duplo Booklet Maker with Trimmer

The Duplo dynamic bookletmaker and Trimmer create a system capable of finishing sheet sizes from 120 x 170mm up to 230 x 450mm at up to 3,600 books per hour.

Automatic Papersize-Changeover Bookletmaking The convenient automatic setting of the Bookletmaker offers speed and reliability to maximize productivity and increase profits. Professional booklet making up to 3,600 sets an hour, the optional Trimmer is designed to be used in-line with the This rugged trimmer precisely and consistently face trims booklets up to 48 sheets.

The Bookletmaker is customized for simple setup and user-friendly operation. With the most common applications pre-programmed, bookletmaking is accessed at the simple touch of a button. Setup and changeover are accomplished automatically, with no lengthy adjustments necessary. Since the side guides, head stops, staple/fold position stoppers, and machine automatically move to the correct position, the operator can conveniently change from one job to the next in mere seconds.

Duplo Bookletmaker

Corner/Side/Top Stitching Application

Sheet Size 4.73" x 5.52" to 12.60" x 14.33"

Paper Capacity 0.12" or equivalent to 30 sheets of 20 lb. paper

Signature Bookletmaking Application (Saddle Stitch and Fold)

Sheet Size 4.73" x 8.27" to 14" x 20"

Paper Capacity Up 25 sheets of 20 lb. paper

Speed: Up to 3,600 sets per hour*

Detection: Jam and misfeed

Number of Stitcher Heads: 1 - 4 (2 standard Interlake heads)

Stitch Positions: Side, corner, saddle

Programmable Memory Settings: 8

At Promotional Printing Machinery Limited we provide a quick turnaround, which is usually 2-3 days once payment is received depending on the size of your order.

If you require installation we can provide one of our experienced engineers to do this for you at extra cost.

Our UK sales are shipped out using our local haulage company, the items are fully secured to wooden pallets and covered with shrink wrap film to protect them during transport.

Export machines are sealed into strong wood crates that are sourced from sustainable materials, which are collected by our shipping agent and distributed to you by either Air, Road or Sea.

We only accept payment via bank transfer or cash on collection. A VAT invoice will be supplied with the machine. PayPal payment is not accepted.

Specifications
