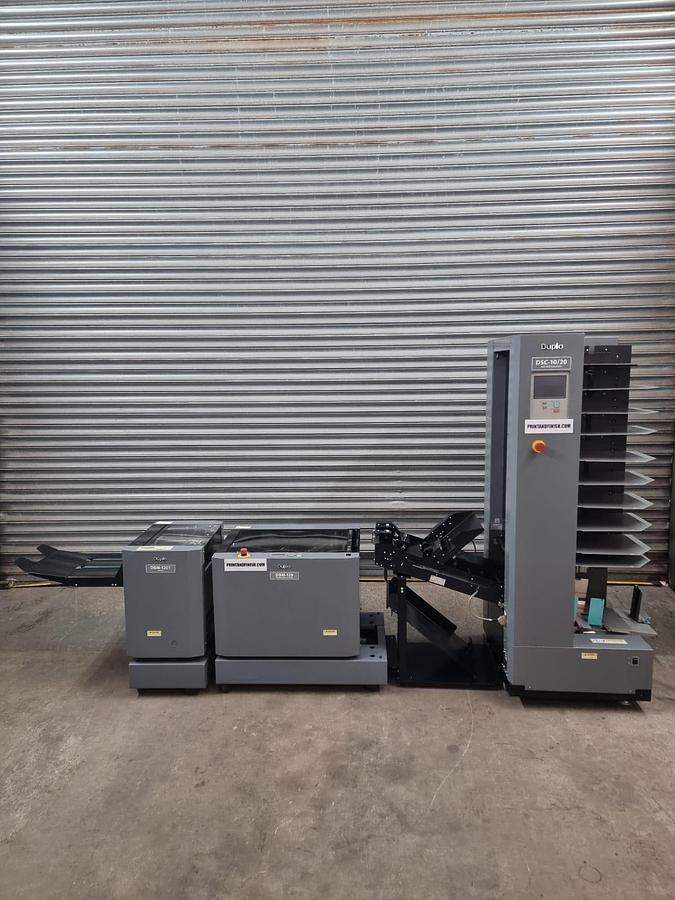

Duplo 10 Station Collator with booklet maker

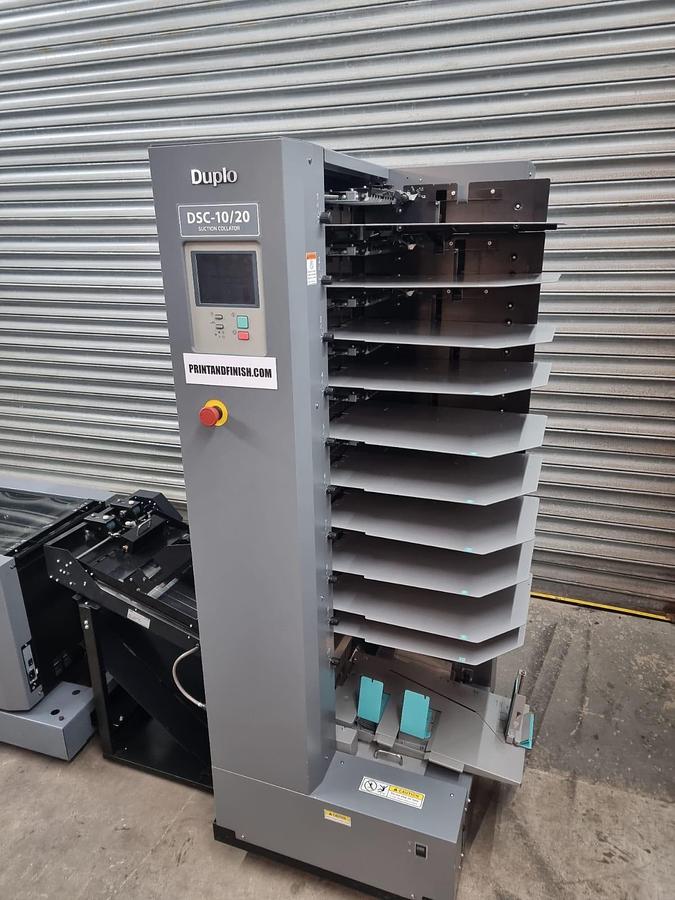

Duplo 10/20 Collator TEN STATIONS, WITH DSC STACKER DELIVERY

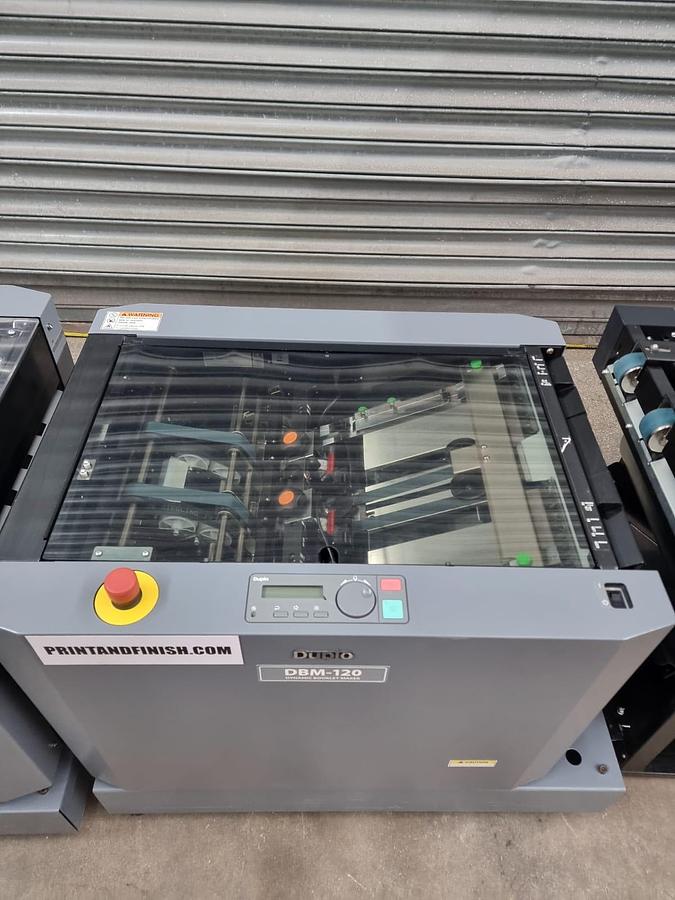

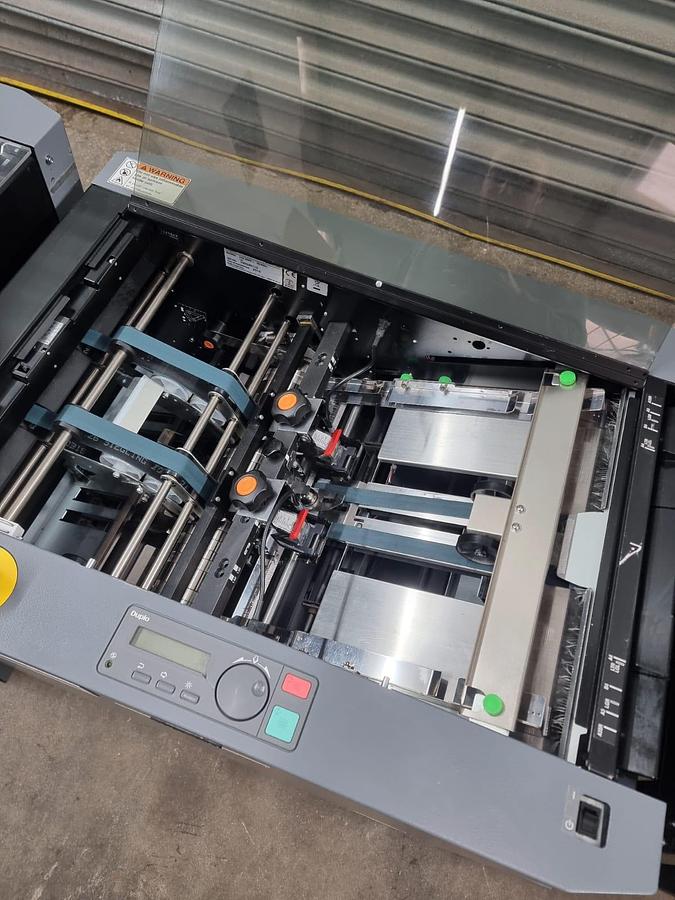

MAX SHEET SIZE: 320 x 450 MM, MIN SHEET SIZE: 140 x 210 MM, STOCK THICKNESS RANGE: 52-300 GSM, UP TO 7200 SPH SPEED, VACCUM BELT FEED SYSTEM, COLOR TOUCH SCREEN CONTROLS, BLOCK / WAITING MODES, DOUBLE/MISS/EMPTY DETECTION Duplo DBM-120 Automatic Booklet Maker - Booklet capacity of up to 20 sheets (100 pages) of 20-lb. stock. - Block capacity of up to 30 sheets of 20-lb stock. - Production speeds of up to 1800 booklets per hour can be achieved. - Programmable with 10 pre-set & three custom sizes - Corner, Side or Regular Booklet Stapling - Can be used used without staple head to fold up to 20 sheets in half - Connects to the Duplo DSF-2000 Set Feeder & DBM-120T Automatic Trimmer. Duplo DBM-120T Automatic Trimmer - Trim capacity of up to 20 sheets (100 pages) of 20-lb. stock. - Production speeds of up to 2400 booklets per hour can be achieved. - Trim margin of up to 0.79" - Min/Max Booklet Size - 3.94" x 7.87" / 8.86" x 12.60" - Connects to the Duplo DSF-2000 Set Feeder & DBM-120 Bookletmaker. A4 Sheet Speed Max 120 Sheets/Min A4 Booklet Production Max 40 Books/Min A3 Booklet Production Max 30 Books/Min Typical Hourly Production 5 Sheet A4 5800 sheets (= 194 ppm) 5 Sheet A3 4500 sheets (= 300 ppm) Programmes 10 pre-set sizes / 3 custom sizes Sheet Sizes(Min) 279mm x 210mm Sheet Sizes(Max) 457mm x 320mm Booklet Sizes (Min) length 140mm (before trim) x 210mm Booklet Sizes (Max) length 229 (before trim) x width320mm Capacity (80gsm) 20 sheets (with grain) Stitch/Staple Type 2 x Staple (from 2 x 5000 staple cartridge)

Export machines are sealed into strong wood crates that are sourced from sustainable materials, which are collected by our shipping agent and distributed to you by either Air, Road or Sea.

We only accept payment via bank transfer or cash on collection. A VAT invoice will be supplied with the machine. PayPal payment is not accepted.
