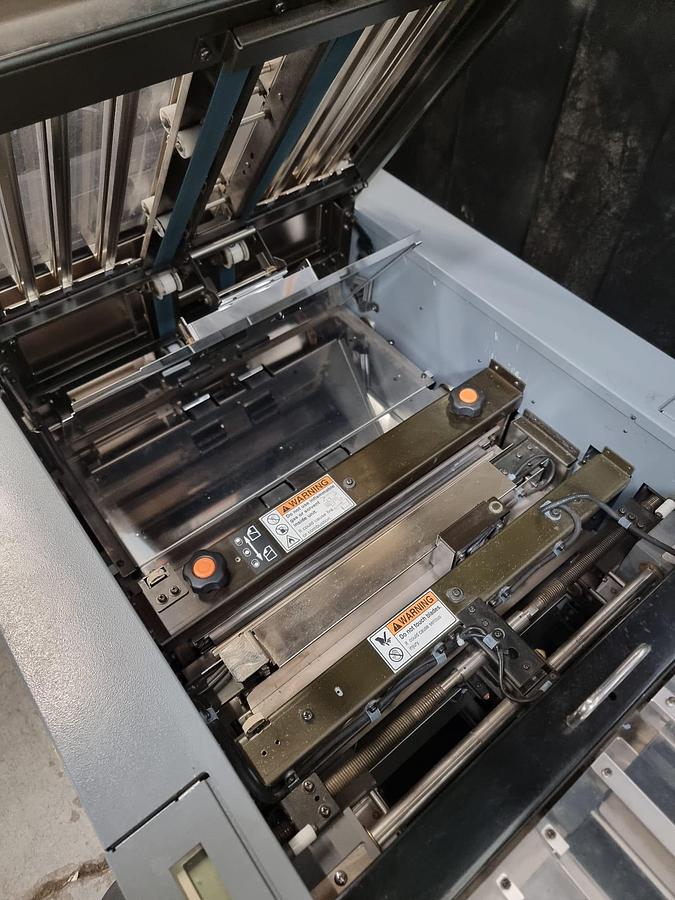

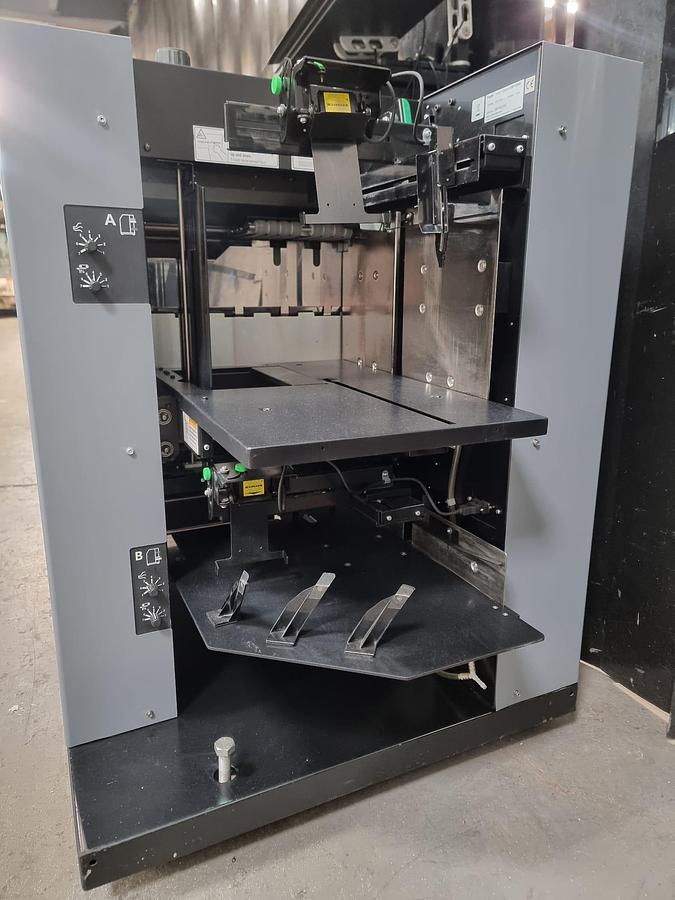

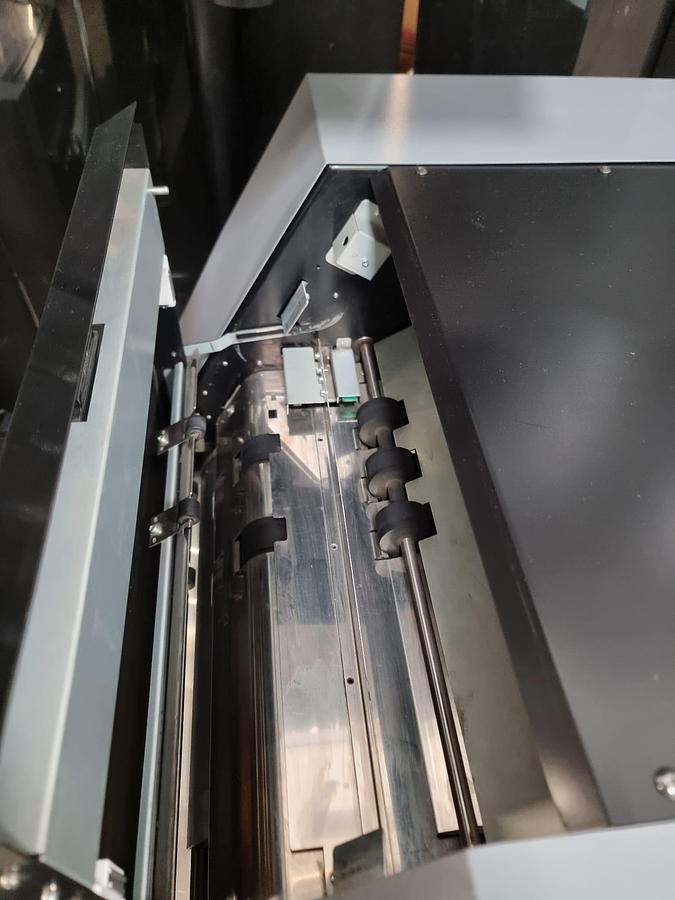

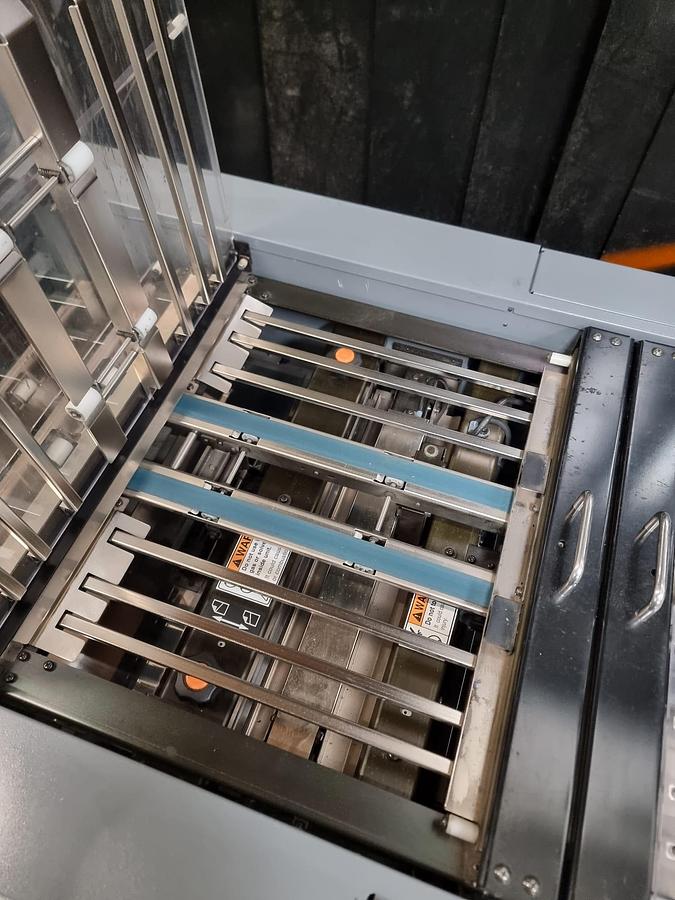

Duplo 5000 sheet feeder , fold , stitch , trim crease booklet maker

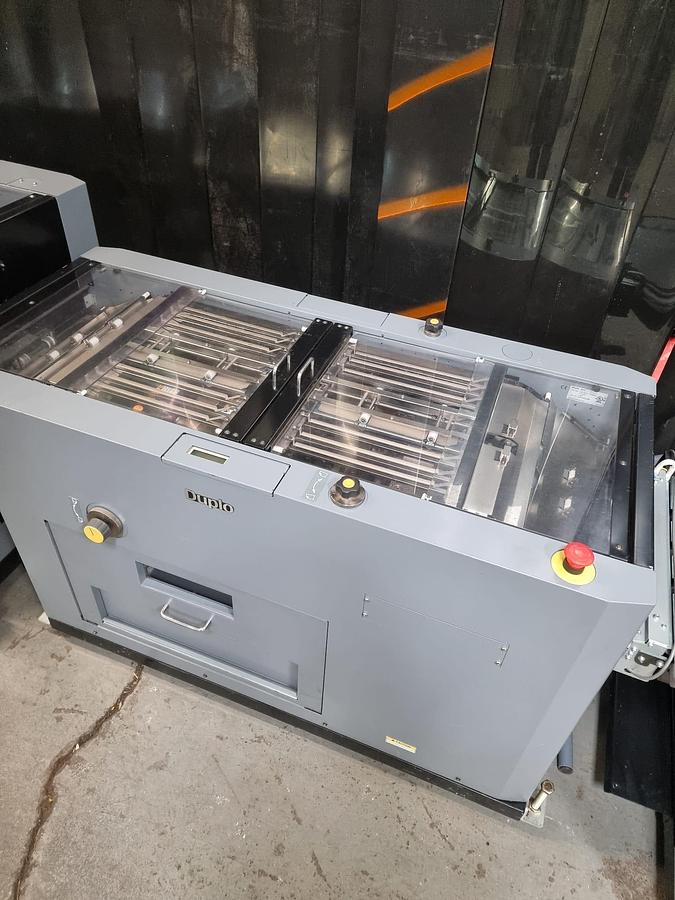

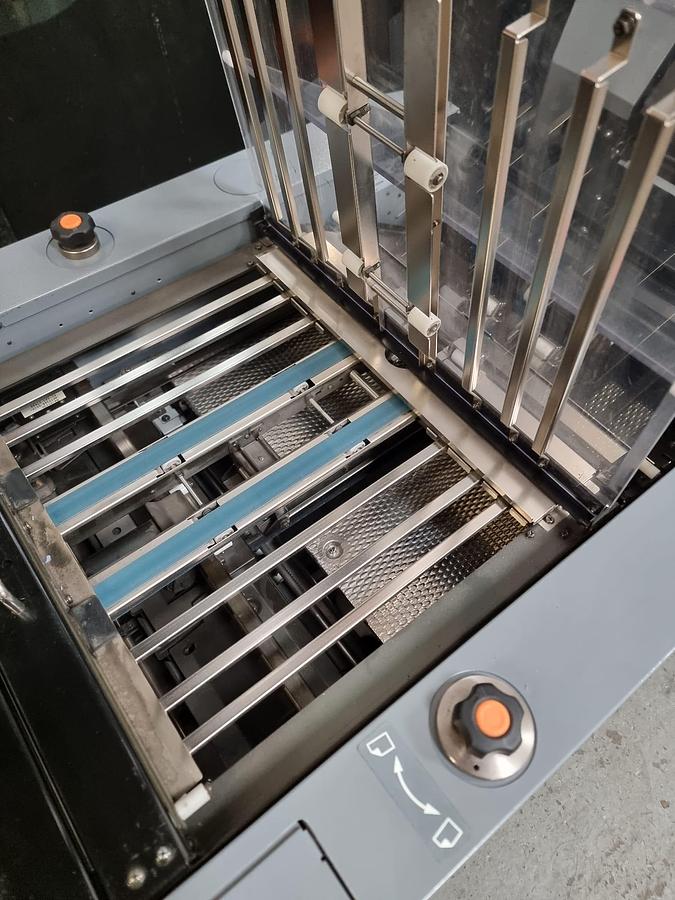

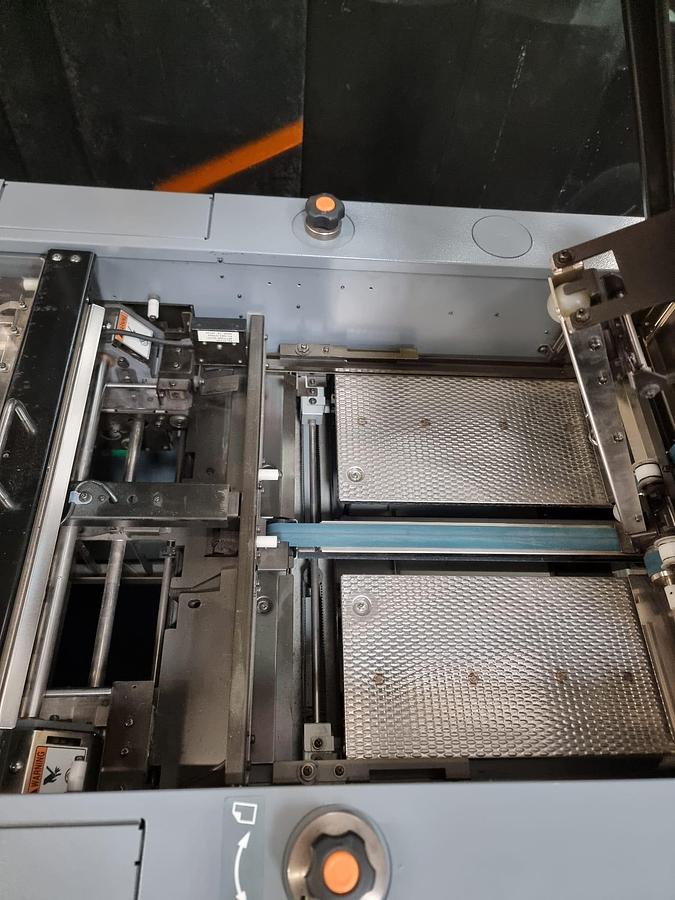

The Duplo 5000 Sheet Feed + Bookletmaker system F/S/T dbm the most productive and technologically-advanced collating and booklet making solution in the industry . . . the System 5000! Redefining the word automatic, Duplo presents the first and only truly automatic finishing machine that delivers cutting edge technology and unprecedented speeds of up to 5,000 booklets and 10,000 collated sets per hour. Produces a range of applications including A4/A5 booklets, A3-A6 booklets, CD books, report manuals, product brochures, catalogs, academic journals and loop stitch brochures. The heavy-duty System 5000 demonstrates superb versatility with its ability to feed up to 12-point cover and a variety of sheet sizes.

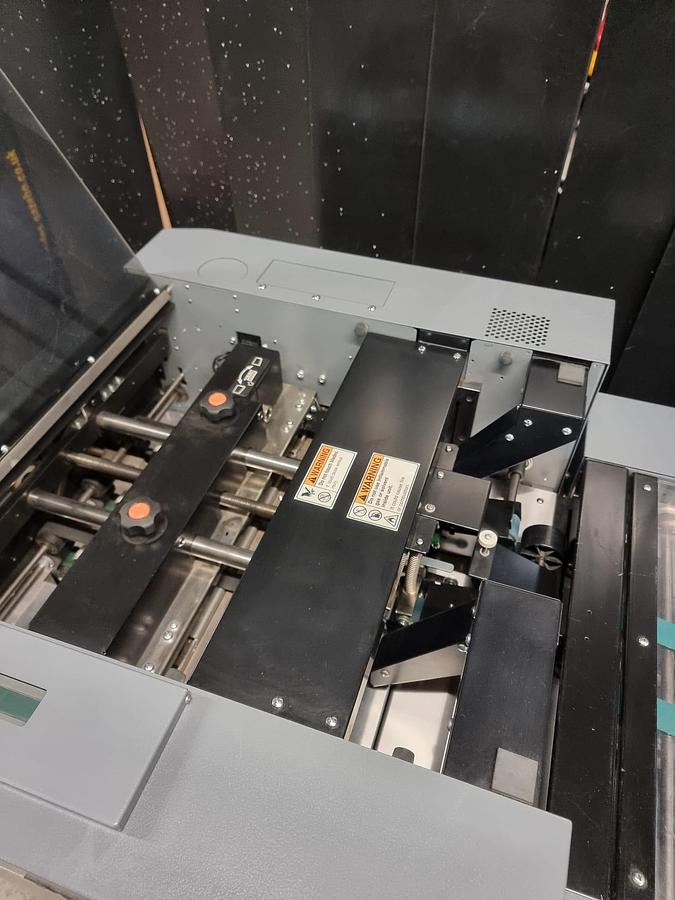

The Duplo SCC Unit provides the slit/cut/crease module to produce incredibly finished booklet quality. The SCC unit can handle sheets that need trimming to size, this avoids guillotining, you can also score before folding to avoid cracking.

All of these small features put together just amount to perfection with regards to your booklets.

Add this unit onto your Duplo System to get your high quality booklets today!

A Duplo system is quite simply the intelligent choice for your print business.

Paper Size: Letter, legal, ledger, A#, A4, B4, Custom sizes between 8.5" x 11" and 11" x 17"

Paper Weight: 14-42 lbs

Speed: Up to 2,000 sets per hour

Error Detection: Bin Empty

Double Feed

Mis-feed,

Cover Open

Paper Jam

Downstream finisher error

Dimensions (LxWxH): 44" x 30" x 40"

Weight (lbs): 300

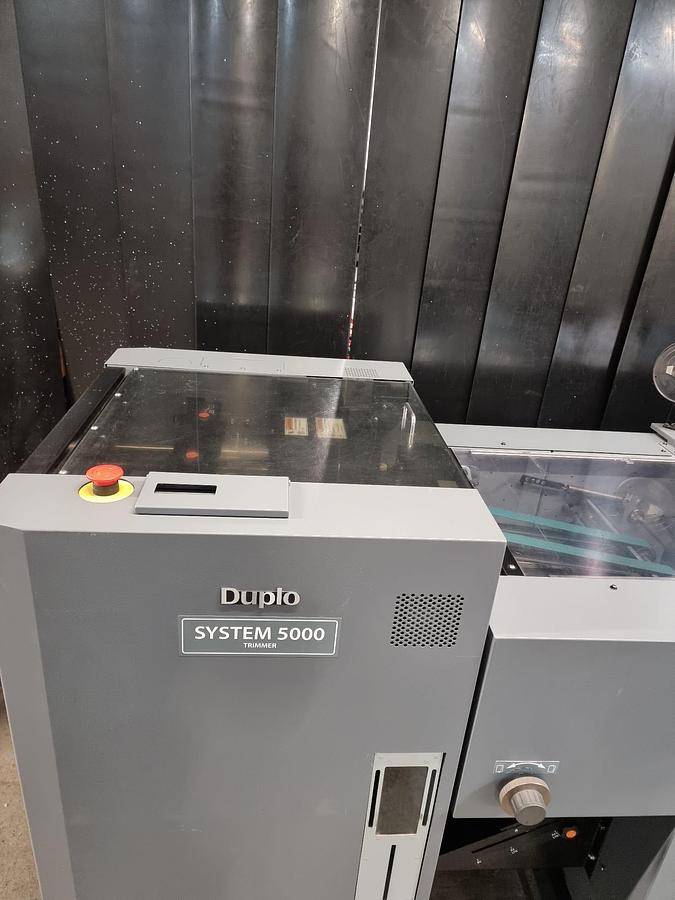

1 x Duplo System 5000 trimmer

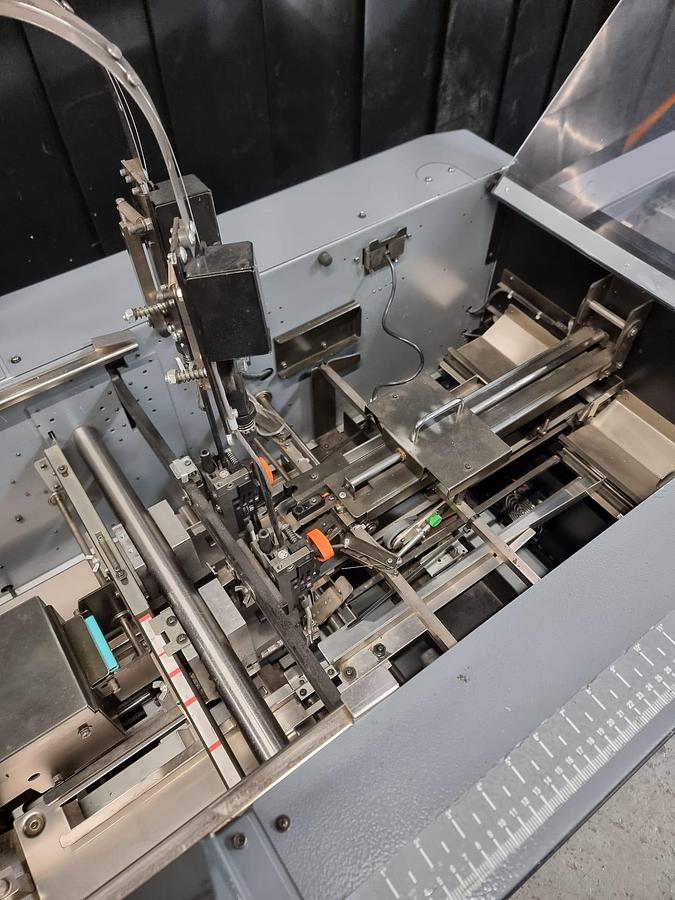

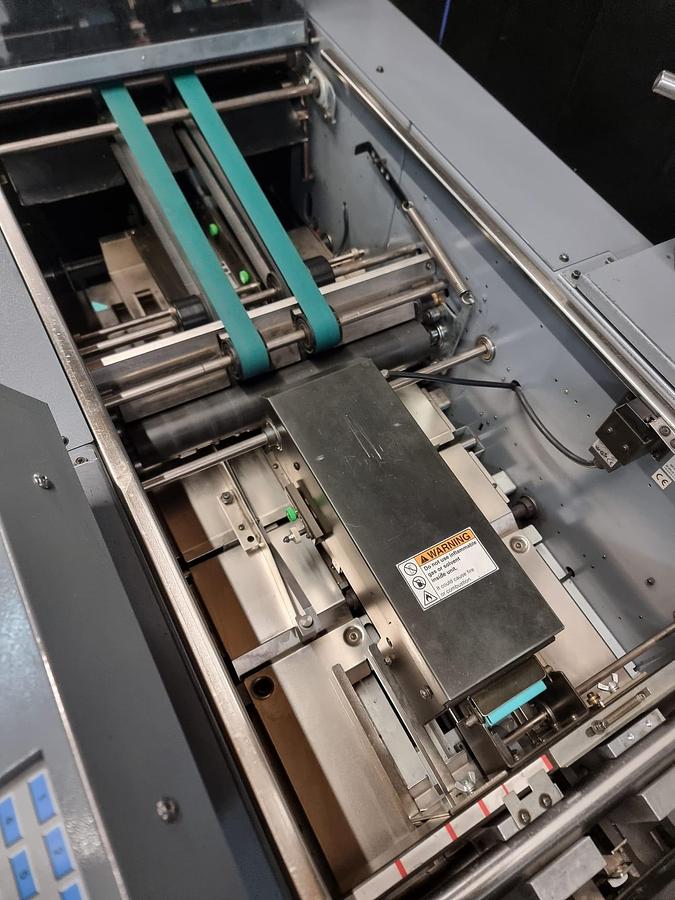

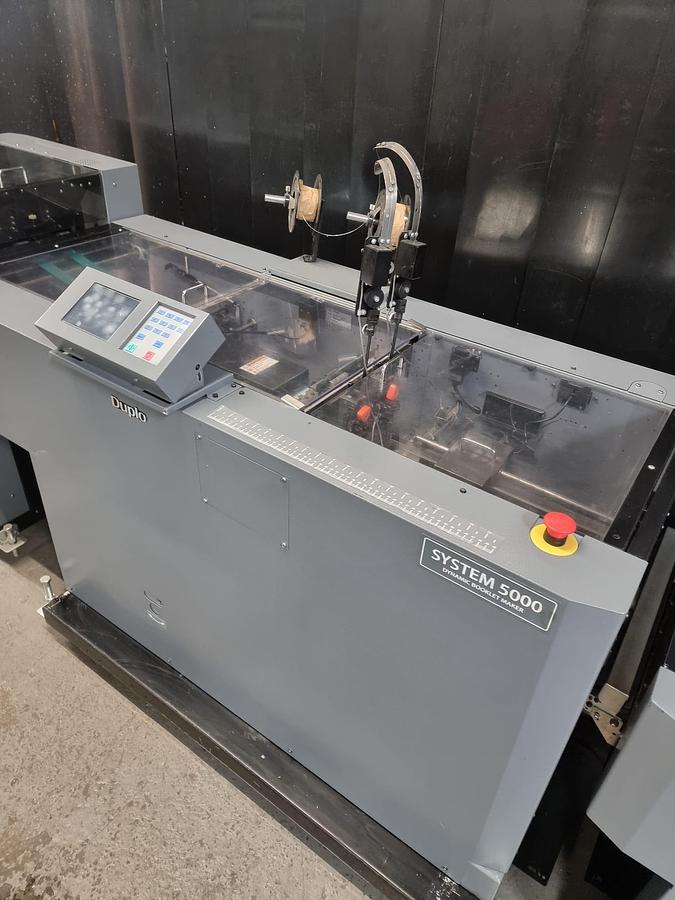

1 x Duplo System 5000 Dynamic Bookletmaker

Combines litho and digital work

Four finishing styles

High performance paper handling

Automatic set up of bookletmaker

Creasing of selected pages to avoid cracking

Camera system to compensate for image drift

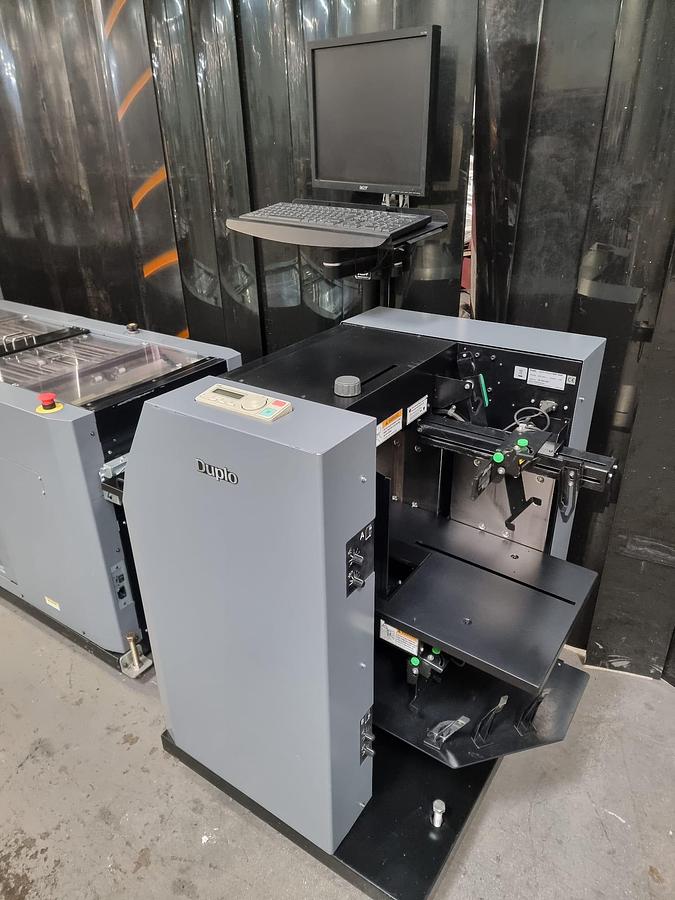

Clear PC-based set up interface

Paper Size:

Length: 170 to 500 mm - Width: 120 to 356 mm

Paper Type:

Fine Quality Paper: 80.0 to 300.0 gsm

Art/Coated Paper: 84.9 to 300.0 gsm

Fine Quality Paper: 60.0 to 127.9 gsm

Art/Coated Paper: 84.9 to 157.0 gsm

Slitting Range: (Both edges are slit)

Front edge: 4 to 25 mm

Rear edge: 4 to 25 mm

Cutting Range:

Lead edge: 4 to 25 mm

Tail edge: 4 to 25 mm

Maximum Process Speed:

Slitter: 60 sheets/min

Cutter: 25 sheets/min

Creaser: 60 sheets/min

A3: 150 sheets/min

A4: 200 sheets/min

Power Supply: 120V - 240V, 50Hz/60Hz

Power Consumption -120W, 1.4 - 0.6A

The Duplo 5000 with Sheet Feeder and SCC (Slit-Cut-Crease) is part of a high-end automated finishing system used in digital and offset print environments. Here's a breakdown of what this equipment typically does:

✅ Duplo 5000:

This refers to the Duplo DC-5000 or Duplo DC-646/DC-748, part of Duplo’s digital color finishing systems. These machines are designed to automatically cut, slit, crease, and perforate printed sheets in one pass. The exact model (DC-5000, DC-646, DC-748, etc.) may vary by region or configuration, but the general features are:

• High-speed, automated finishing
• One-pass processing: slitting, cutting, creasing
• Handles various paper sizes and thicknesses
• Ideal for short-run jobs (e.g., business cards, postcards, brochures)

✅ Sheet Feeder:

This is an automated feeding unit that allows the Duplo system to:

• Load large stacks of printed sheets
• Feed them automatically into the finishing system
• Improve productivity and reduce manual labor

This is especially helpful for high-volume jobs, ensuring consistent feeding with minimal operator intervention.

✅ SCC (Slit-Cut-Crease) Module:

The SCC module is responsible for:

• Slitting: Trimming the sides of the sheet to remove white borders or split it into columns
• Cutting: Cutting sheets into multiple pieces (e.g., 8-up business cards)
• Creasing: Creating fold lines that prevent toner cracking on digital prints

This module enables full-bleed finishing with clean, accurate cuts and creased folds, all in one pass.

🛠️ Common Applications:

• Business cards (8, 10, or more up)
• Postcards
• Greeting cards
• Brochures
• Tickets and coupons
• Invitations with folds

🚀 Benefits:

• Saves time on manual trimming/folding
• Reduces labor costs
• High accuracy and consistency
• Perfect for short-run, fast-turnaround jobs
• Ideal for digital print environments (like print shops or in-plant printers)
