Horizon Stitchliner Bookletmaker 24 Station Collator , Fold , Stitch, Three knife trim

Horizon Stitchliner 5000 Bookletmaker

3 x Horizon Vac-60HC

1 x Horizon Vac 60H SN

1 x Horizon ST40

1 x Horizon ACF-30 SB

1 x HTS-30S SN SPF-30S

HTS 603012

COUNT 10. million

The Horizon StitchLiner is a type of automated booklet maker used in the printing and finishing industry. It's manufactured by Horizon International Inc., a Japanese company known for high-quality finishing equipment. The StitchLiner series is designed to combine several finishing steps into one streamlined system, typically including:

• Collating (gathering printed sheets in the correct order)
• Saddle stitching (stapling in the spine)
• Folding
• Face trimming

Key Features:

• Inline or nearline operation: Can work directly with a digital press or as a standalone unit.
• High speed and automation: Reduces manual labor and increases production efficiency.
• Touchscreen control: For easy job setup and operation.
• Variable sheet size and thickness handling: Useful for short-run digital printing jobs, including variable data printing.

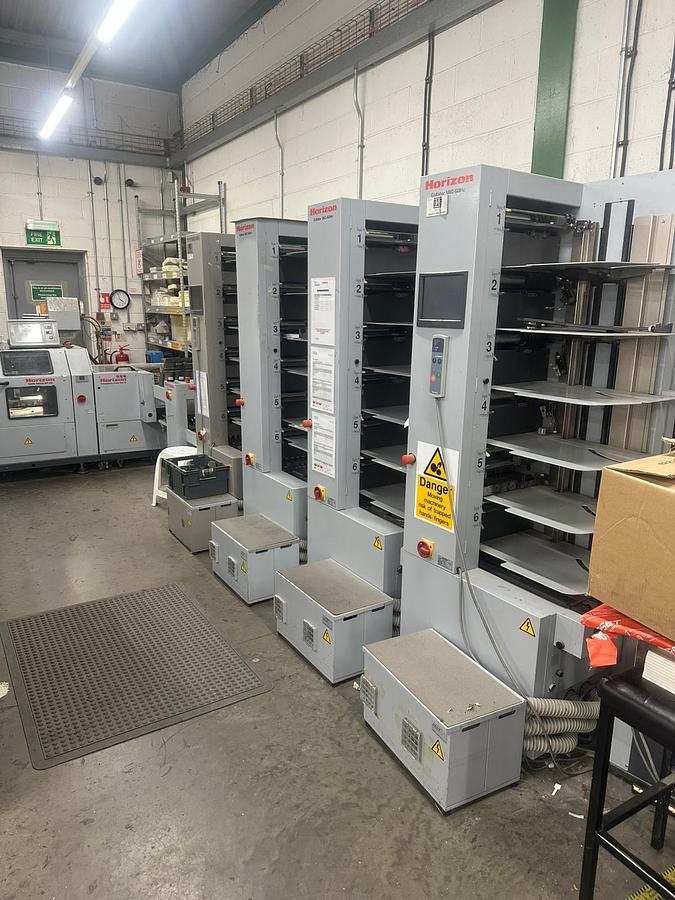

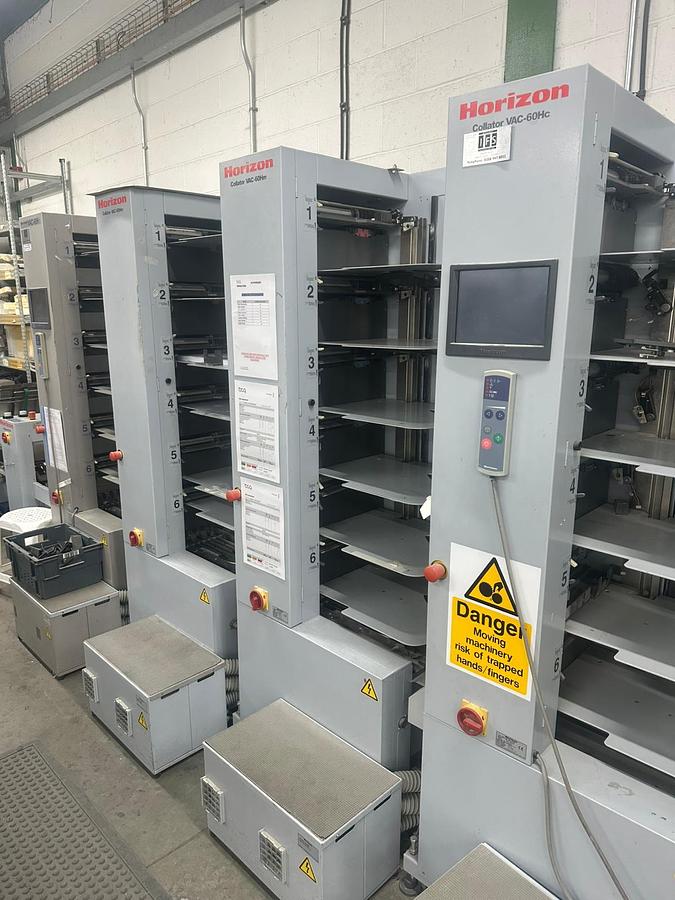

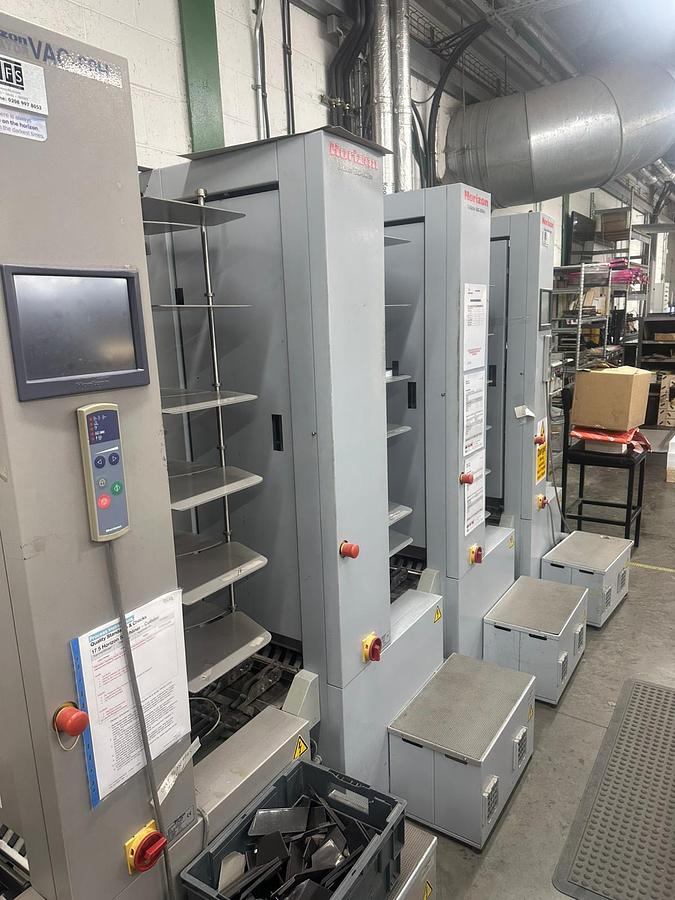

Increase Efficiency. Maximize Output. Meet the Horizon VAC-60H 🔹

Professional Collating. Seamless Performance. Unmatched Reliability.

Take your print finishing to the next level with the Horizon VAC-60H Air Suction Collator — engineered for high-speed, high-volume production with precision and ease. Whether you're producing booklets, manuals, or complex collated sets, the VAC-60H delivers unmatched reliability and flexibility in a compact, modular design.

✅ Key Features:

• Scalable Design: Start with 6 bins — scale up to 24 bins with modular tower expansion.
• High-Speed Output: Up to 9,500 collated sets/hour for top-tier productivity.
• Smart Feeding System: Advanced rotary suction technology ensures smooth handling of a wide range of paper types and weights (40–250 gsm).
• User-Friendly Control: Full-color touchscreen and wireless remote for intuitive, efficient operation.
• Built-In Quality Checks: Automatically detects misfeeds, double sheets, and jams — so you don’t have to.

📐 Technical Specs:

• Sheet Sizes: Max 500 × 350 mm / Min 148 × 120 mm
• Bin Capacity: Up to 130 mm pile height
• Compact Footprint: 842 × 652 × 1,961 mm per tower
• Power: 230V, 50/60Hz

🚀 Perfect for:

• Commercial print shops
• In-plant printing facilities
• Digital & offset production environments

Horizon VAC-60H — Where precision meets productivity.

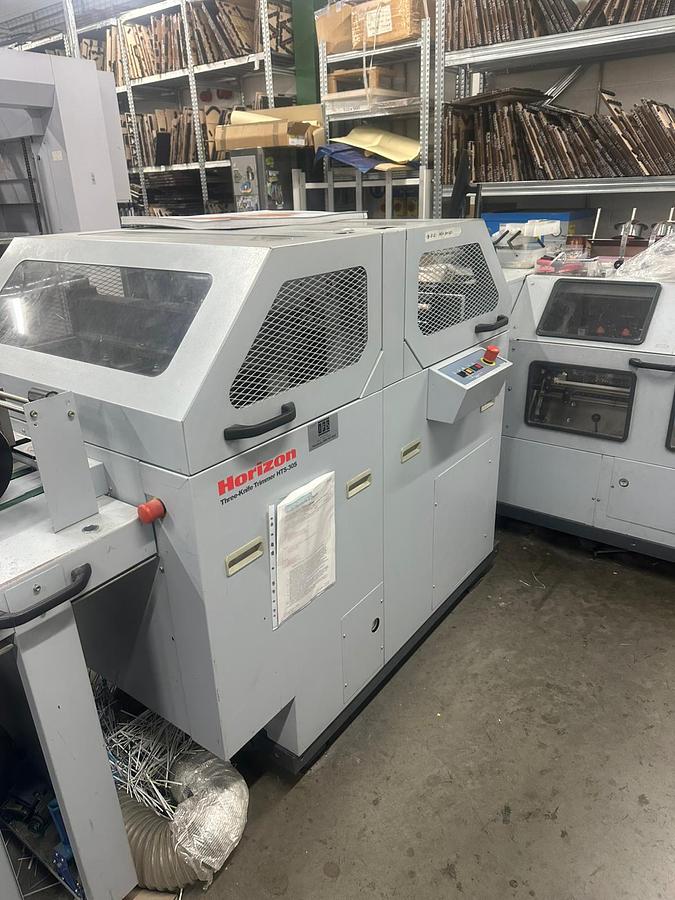

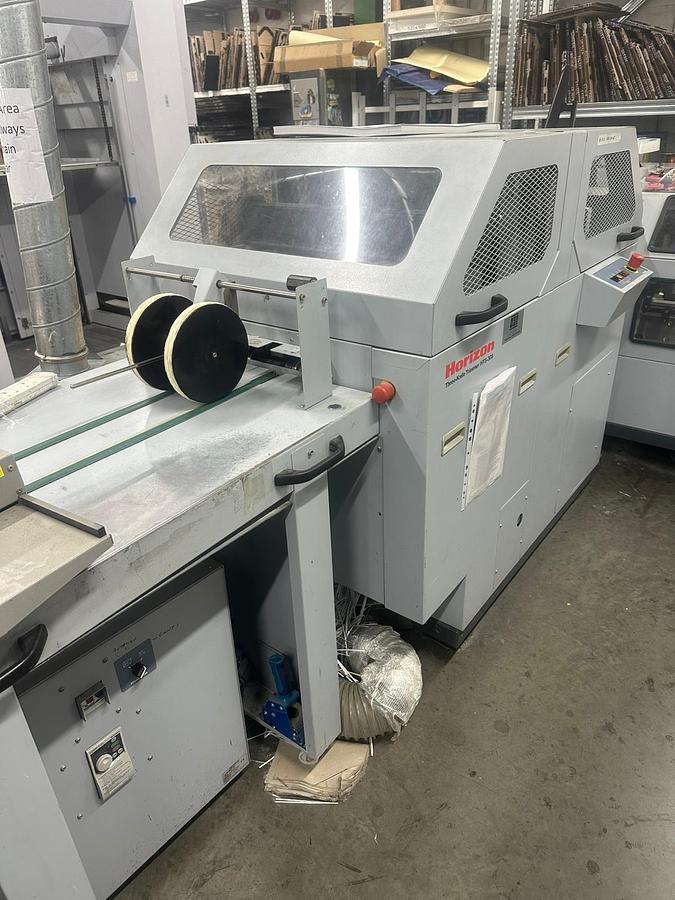

Discover the Power of the Horizon HTS-30S Three-Side Trimmer

Take your booklet finishing to a whole new level with the Horizon HTS-30S – a compact, automated three-side trimmer engineered for speed, accuracy, and ease of use. Perfect for short-run and on-demand production, this powerhouse delivers professional-quality results with minimal operator intervention.

🔧 Key Features You’ll Love:

• Fully Automated Setup
• Enter your book sizes via the intuitive touchscreen – the HTS-30S handles the rest.
• Fast & Productive
• Trim up to 400 books per hour for maximum efficiency without sacrificing quality.
• Sharp, Clean Cuts Every Time
• Servo-controlled hydraulic trimming ensures mark-free, precision edges on every book.
• Compact & Smart Design
• Space-saving footprint that fits perfectly into any digital or offset finishing workflow.
• Flexible Format Handling
• Supports a wide range of book sizes and thicknesses – up to 51 mm (2 inches).

📐 Specifications at a Glance:

• Max Trimmed Size: 305 × 230 mm
• Min Trimmed Size: 200 × 134 mm
• Trim Thickness: Up to 51 mm
• Speed: Up to 400 books/hour
• Footprint: 2,350 × 1,160 × 1,370 mm
• Weight: Approx. 1,020 kg

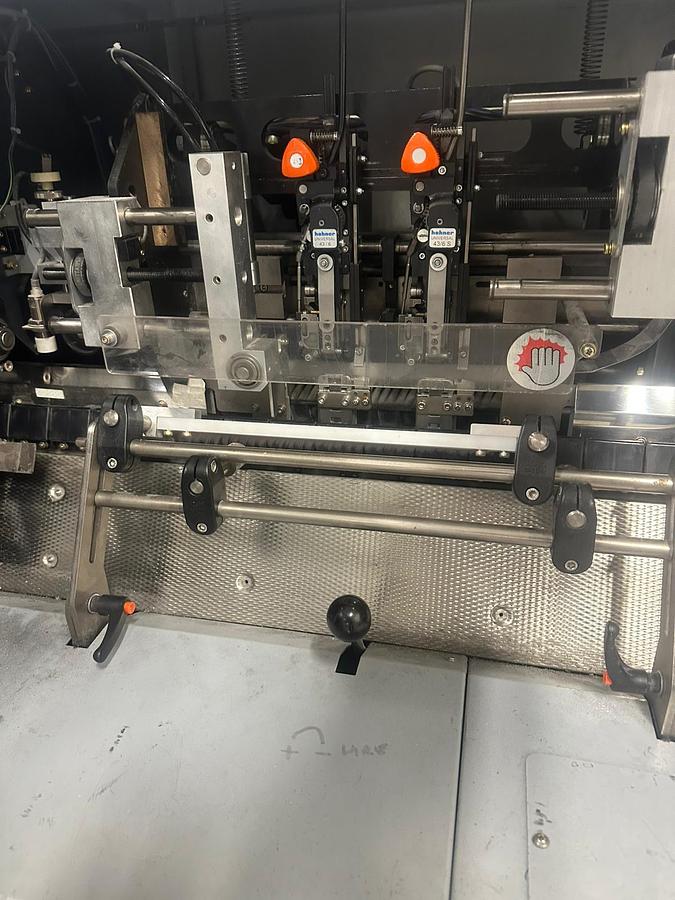

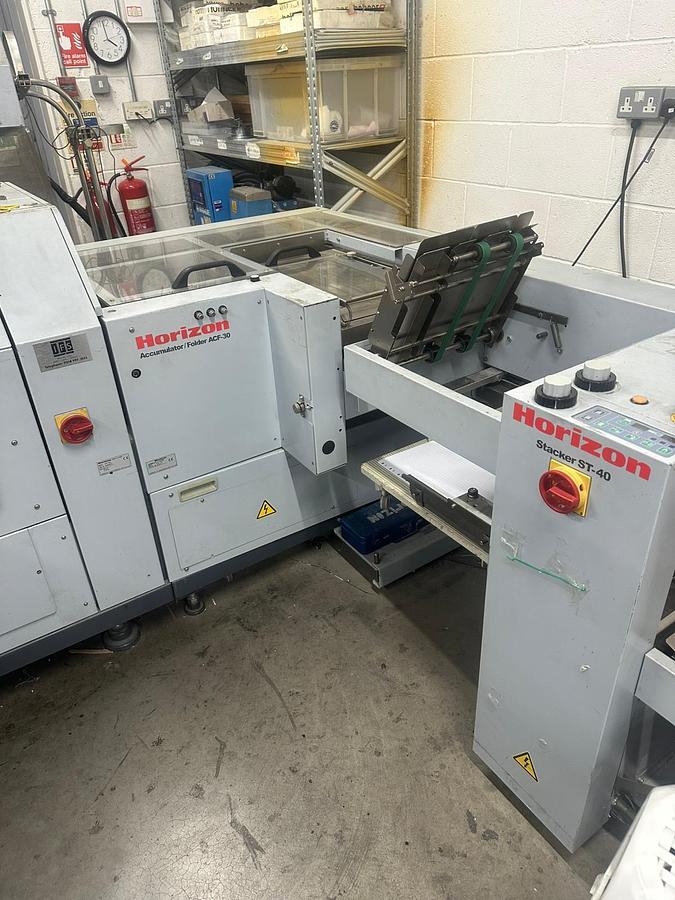

Elevate Your Booklet Production with the Horizon ACF-30 Accumulator & Folder

Streamlined. Efficient. Versatile.

Transform your finishing workflow with the Horizon ACF-30, a high-performance accumulator and folder designed to seamlessly integrate with Horizon's collators and bookletmakers. Whether you're producing manuals, brochures, or catalogs, the ACF-30 ensures precise folding and accumulation, enhancing your production efficiency.

✅ Key Features:

• High-Speed Performance: Achieve production speeds of up to 5,500 booklets per hour, depending on configuration and paper size.
• Versatile Folding Options: Supports various fold types, including parallel, cross, and gate folds, accommodating a wide range of booklet formats.
• Automatic Setup: Features automatic format adjustment for quick and easy changeovers between jobs.
• User-Friendly Interface: Equipped with a color touchscreen for intuitive operation and job setup.
• Compact Design: Optimized for space-saving integration into existing finishing lines.

📐 Technical Specifications:

• Sheet Size: Max. 500 x 350 mm; Min. 148 x 120 mm
• Paper Weight: 40 to 350 gsm
• Processing Strength: Up to 200 pages
• Stitch Thickness: Max. 5 mm
• Stitch Distance: 60 to 150 mm
• Power Supply: 400V / 50Hz
• Dimensions: 5,709 x 3,240 mm (installation space)
• Weight: Approximately 2,120 kg

🚀 Ideal for:

• Commercial Print Shops: Enhance your booklet production capabilities.
• In-Plant Printing Facilities: Streamline internal printing and finishing processes.
• Digital & Offset Printing Environments: Achieve consistent, high-quality results across various print jobs.
