matrix 530 s Laminater foil Automatic omni feeder , top of the range

Extra Heat elements

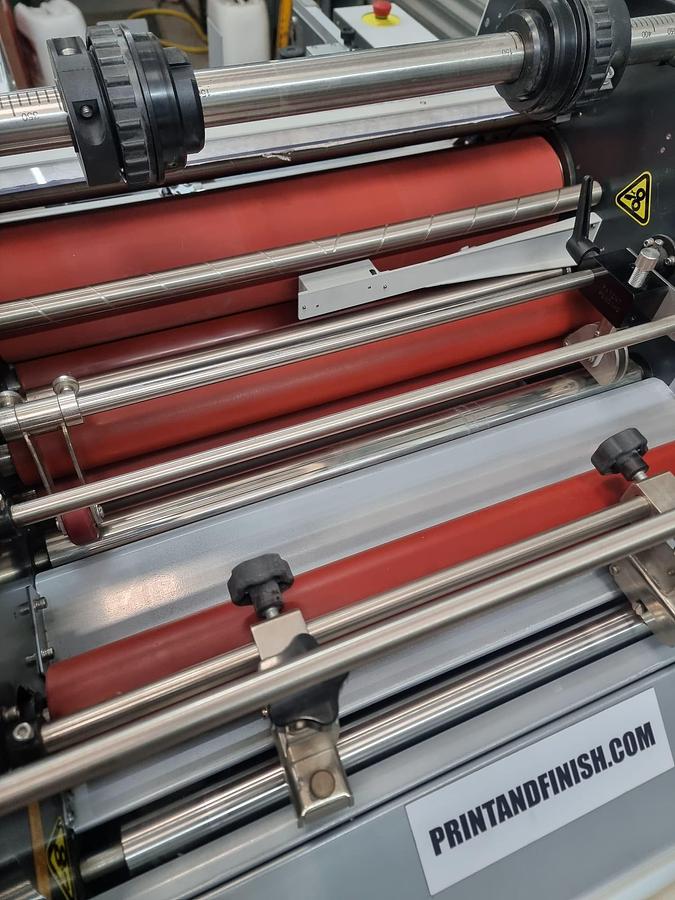

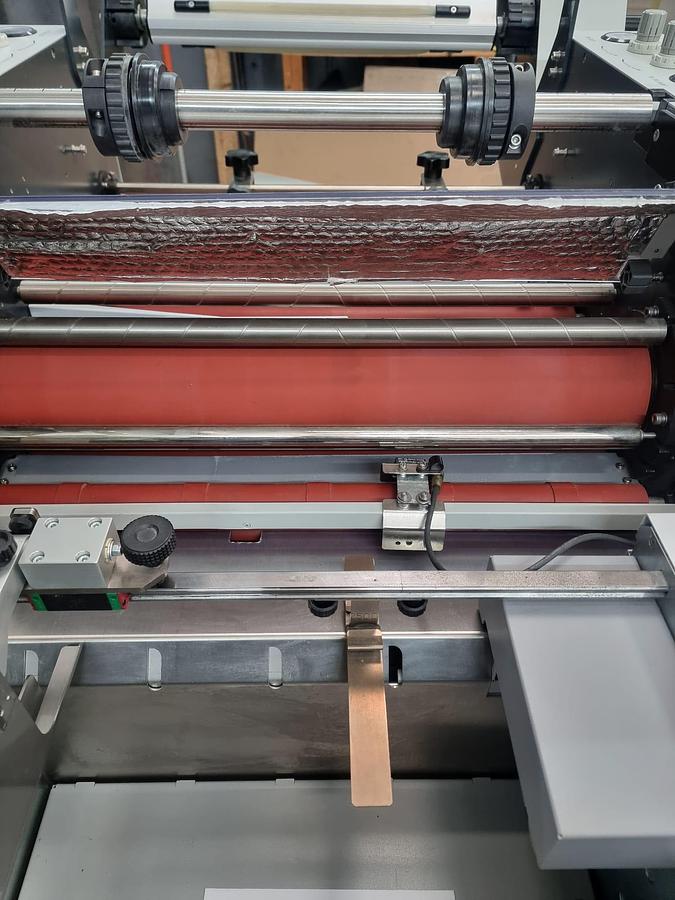

Silicone roller for textured stock

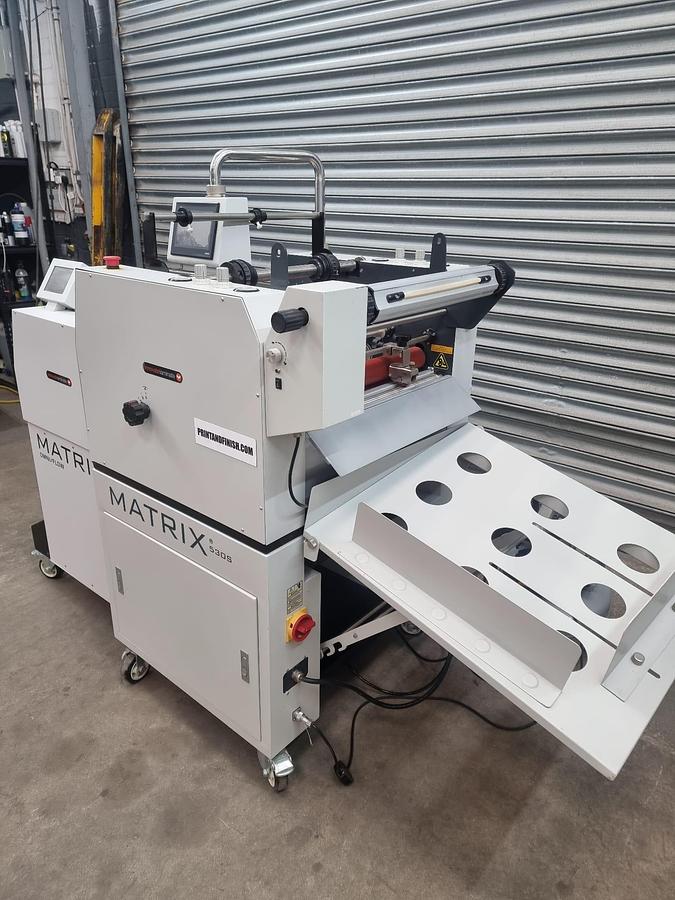

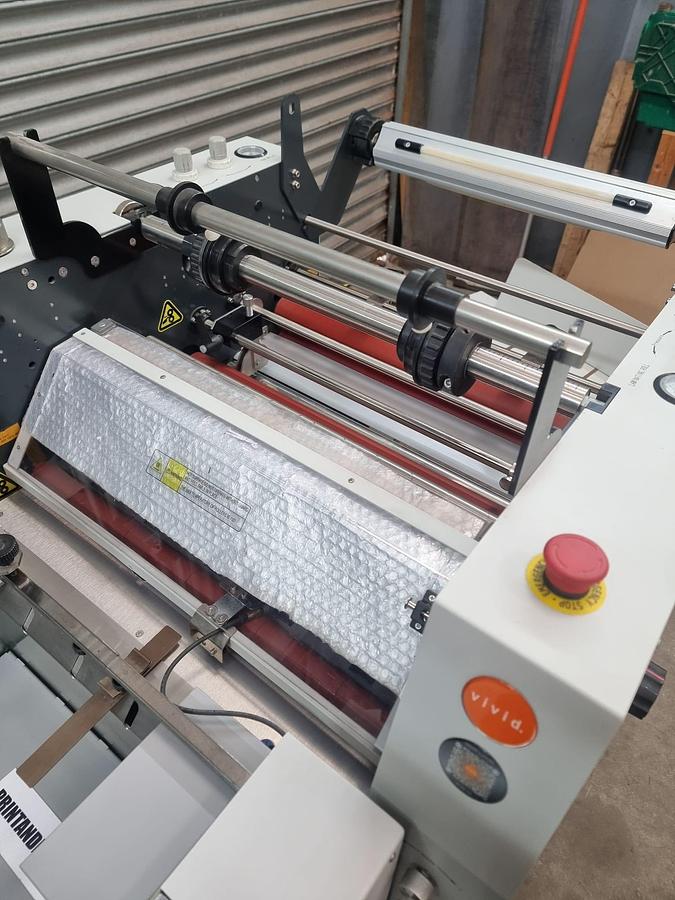

This automatic laminating system is in excellent condition, working perfectly. This Matrix 530P is the newest version with the perspex side display. This full system allows automated lamination and digital foiling up to B2 sheet size.

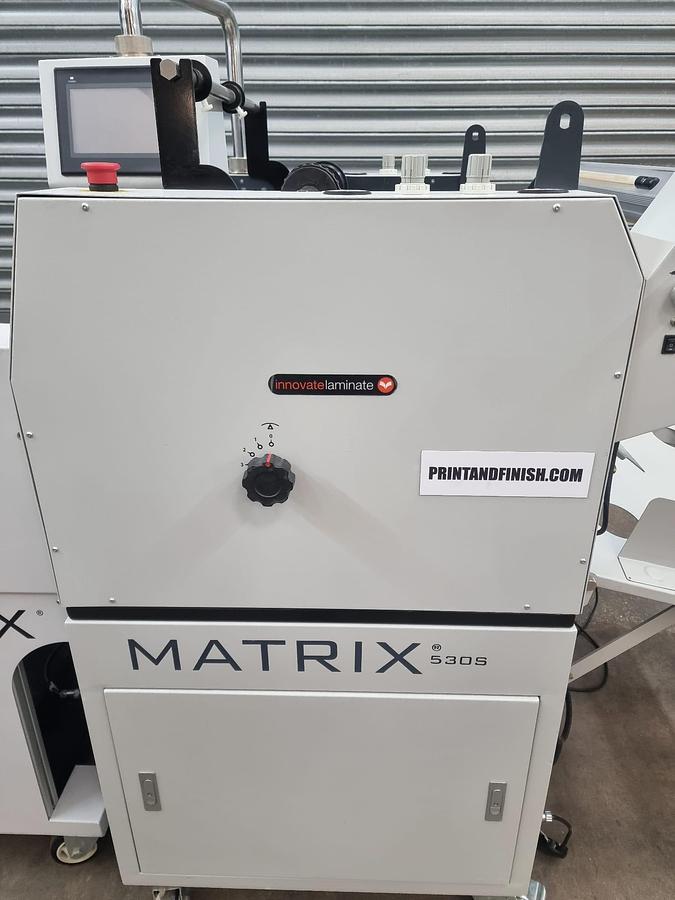

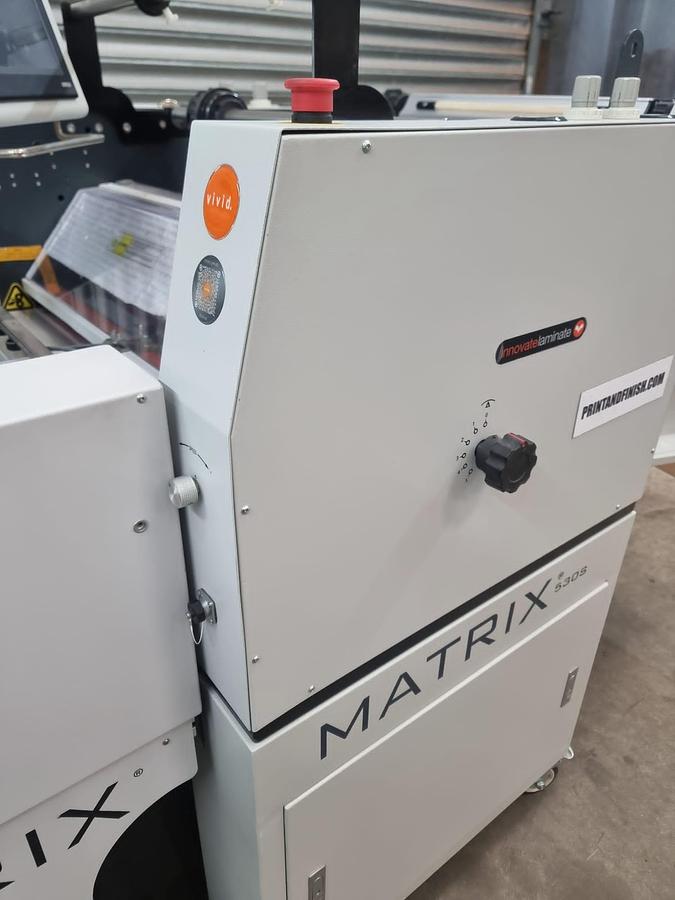

The Matrix 530s is a single sided, pneumatic pressured laminator, capable of laminating up to B2 size printed media. The Omni-Flow feeder allows full automation of the laminating and digital foiling process. It is the ideal solution for short, medium, or long run lamination requirements. The Matrix 530P is extremely cost-effective and allows faster-finish turnaround times.

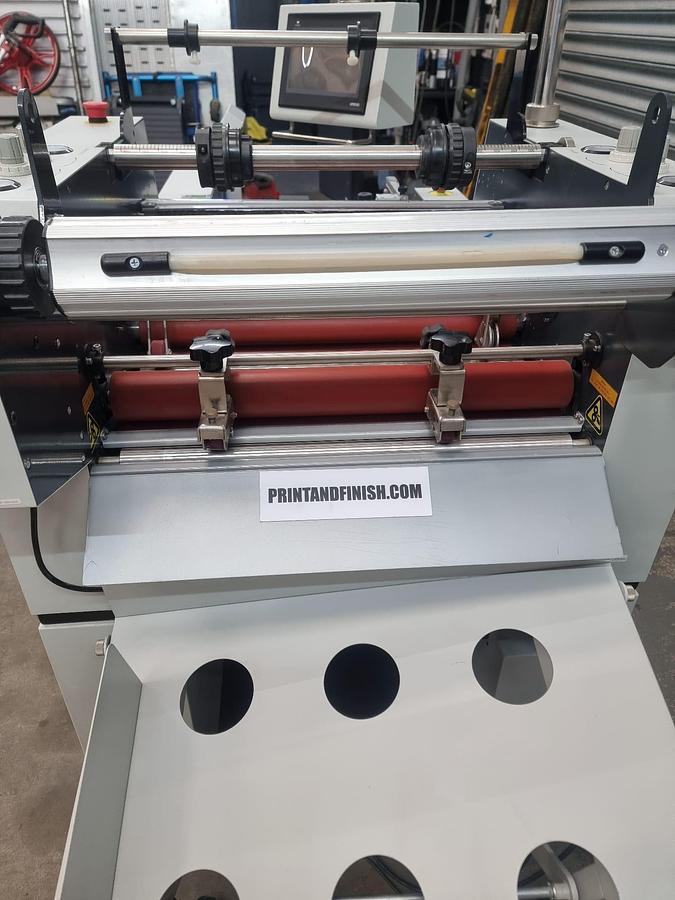

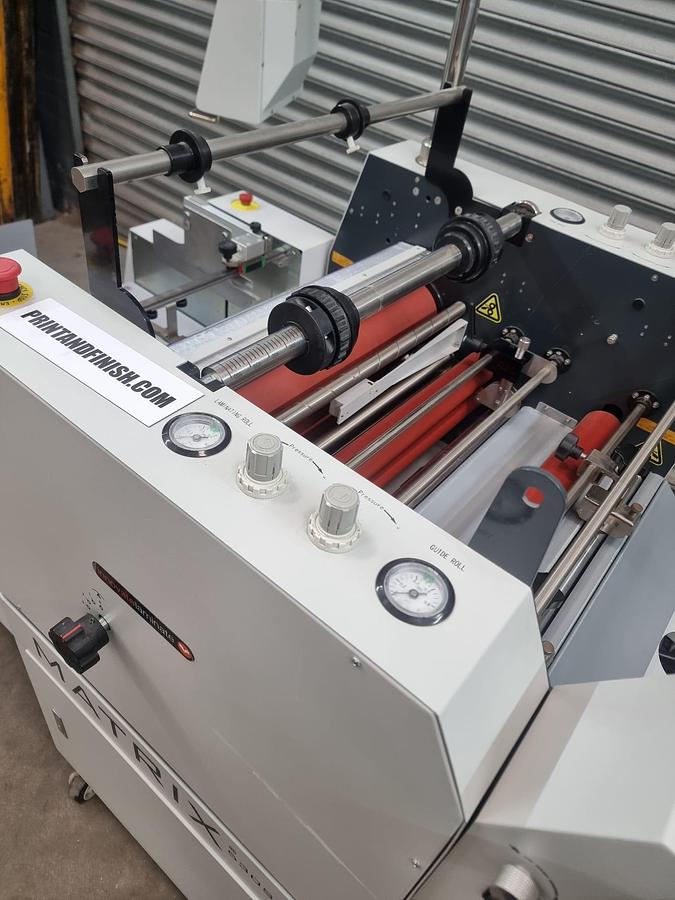

This MX-530P has a 510mm lamination width, which means this model is capable of laminating print up to B2 size. The Matrix 530P will run at speeds up to 10 metres per minute. It has an anti-curl bar which ensures that laminated sheets are flat, and automated sheet separation, meaning laminated media is immediately ready to guillotine. The 530P includes the pneumatic pressure roller, this gives greater flexibility to the type of print that can be laminated and also allows faster production than the standard model.

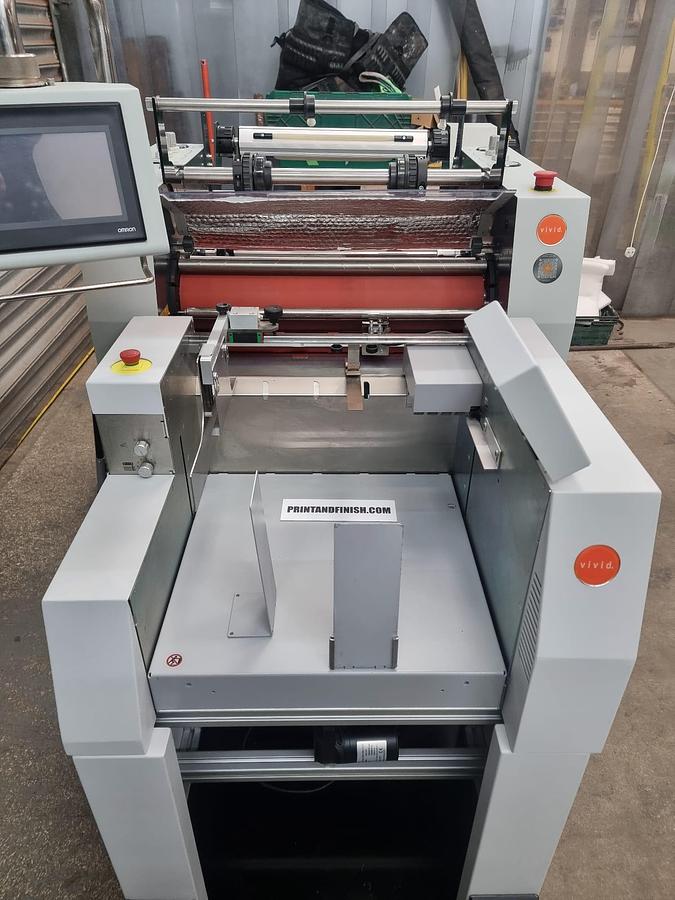

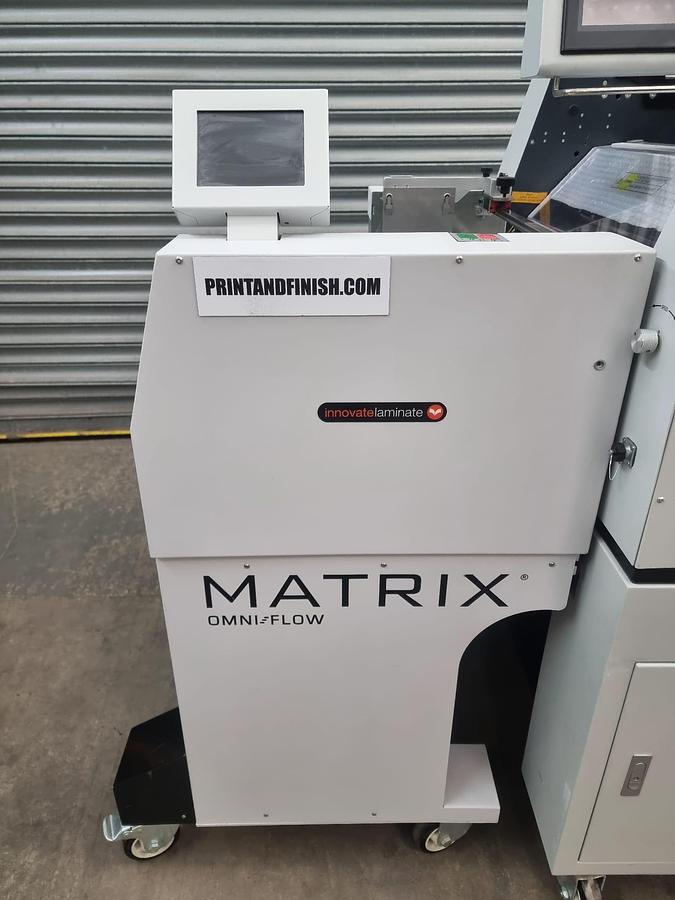

The Omni-Flow is a suction fed sheet feeder that is quick and easy to install, set-up and operate. The feeder has a large load capacity of 180mm and will feed sheet sizes up to 460 x 660mm (1050mm with extension). Changing between different sheet sizes and weights takes seconds via the colour touchscreen control. Paper stock of 110gsm-400gsm+ are capable of being fed on the Omni-Flow 460.

ManufacturerVividModelMatrix 530P

Automatic sheet feederYes,

suction fed

Anti-Curl BarYes

Pneumatic PressureYes

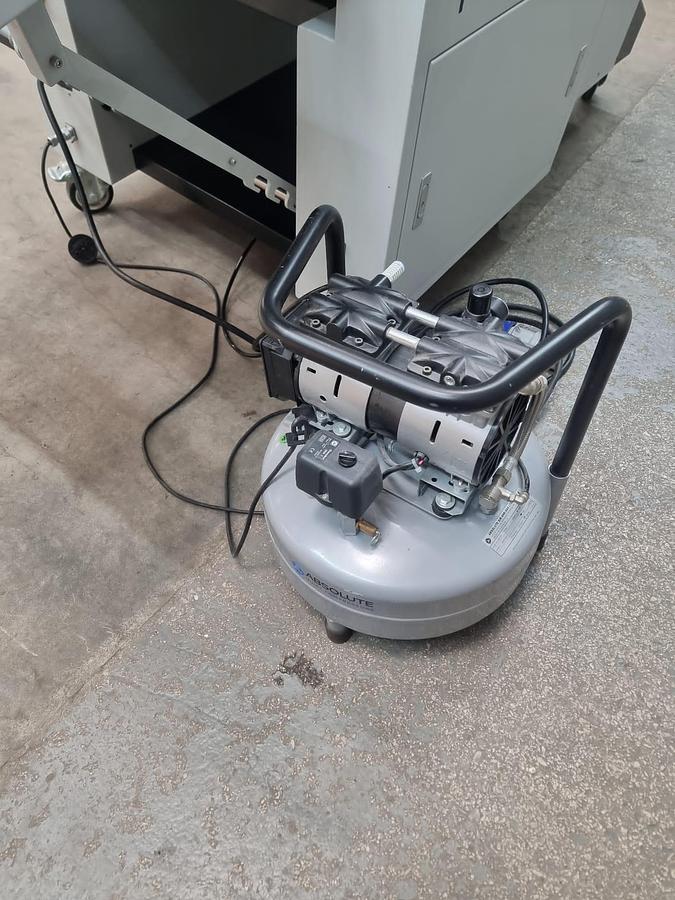

Silent air compressorIncluded

Digital FoilingIncluded

Max laminating width510mm

Max laminating length1075mm (extension table fitted)

Warm up time10 minutes

Temperature range0-140°C

Electrical requirements240v 50/60hz

Machine weight

Matrix 530P Laminator 240kg, Omni-Flow 460 Feeder 91kg

DimensionsMatrix L180mm D900mm H1400mm. Omni-Flow L1250mm (1800mm with extension) D710mm H1250mm
