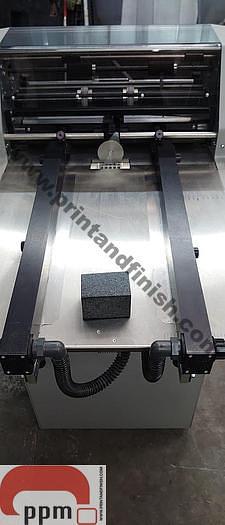

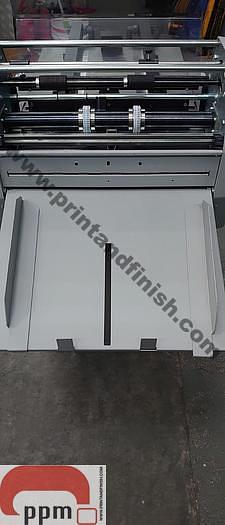

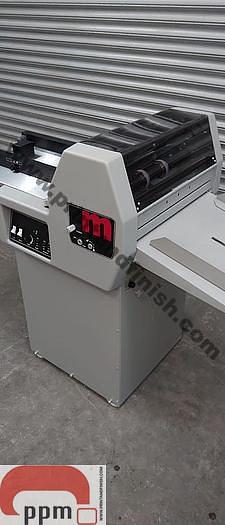

Morgana FSN Numbering Perforating & Scoring Machine

Morgana FSN Numbering Perforating & Scoring Machine

£4,000 Excluding VAT

United Kingdom

orWhatsApp:+44 (0) 7884 423 812

Description

The Morgana FSN, Numbering, Perforating and Scoring machine. This A3 suction fed machine can do numbering (with up to 8 boxes), perforating and scoring. The design and set up of this machine is flawless and can be used by anyone. DIMENSIONS Overall Length working 1340mm Stored 990mm Width 781mm Height 1050mm Weight 147kgs POWER REQUIREMENT 230v-50Hz60Hz MAXIMUM RUNNING SPEEDS 9000 SPH MAXIMUM NUMBER OF HEADS 8 OPTION MINIMUM SHEET SIZE Length 210mm Width 125mm RECOMMENDED STOCK THICKNESS Maximum 7 part carbonless 5 part carbonless Minimum 56gsm/2 MAXIMUM SPACING OF HEADS ON SAME COLLAR WITH FIRST NUMBER PRINTED ON HEAD OF SHEET Parallel 365mm Convex 354mm MINIMUM SPACING OF HEADS ON SAME COLLAR (RADIAL SPACING) Parallel 50.0mm Convex 73.5mm MINIMUM SPACING OF ADJACENT HEADS Parallel 62mm Convex 48mm

At Promotional Printing Machinery Limited we provide a quick turnaround, which is usually 2-3 days once payment is received depending on the size of your order.


If you require installation we can provide one of our experienced engineers to do this for you at extra cost.


Our UK sales are shipped out using our local haulage company, the items are fully secured to wooden pallets and covered with shrink wrap film to protect them during transport.


Export machines are sealed into strong wood crates that are sourced from sustainable materials, which are collected by our shipping agent and distributed to you by either Air, Road or Sea.


We only accept payment via bank transfer or cash on collection. A VAT invoice will be supplied with the machine. PayPal payment is not accepted.

Specifications

ManufacturerMorgana
ModelFSN
ConditionUsed
Stock Number1186
