matrix 530p pneumatic Laminator and hot foil

This automatic laminating system is in excellent condition, working perfectly. This Matrix 530. This full system allows automated lamination and digital foiling up to B2 sheet size.

with foil attachment

The Matrix 530P is a single sided, pneumatic pressured laminator, capable of laminating up to B2 size printed media. . It is the ideal solution for short, medium, or long run lamination requirements. The Matrix 530P is extremely cost-effective and allows faster-finish turnaround times.

This MX-530P has a 510mm lamination width, which means this model is capable of laminating print up to B2 size. The Matrix 530P will run at speeds up to 10 metres per minute. It has an anti-curl bar which ensures that laminated sheets are flat, and automated sheet separation, meaning laminated media is immediately ready to guillotine. The 530P includes the pneumatic pressure roller, this gives greater flexibility to the type of print that can be laminated and also allows faster production than the standard model.

ManufacturerVividModelMatrix 530P

Automatic sheet feederYes,

suction fed

Anti-Curl BarYes

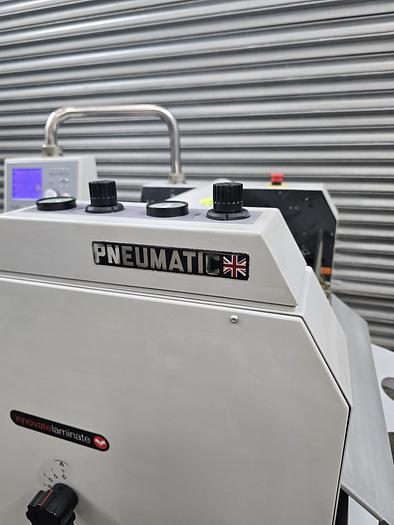

Pneumatic PressureYes

Silent air compressorIncluded

Digital FoilingIncluded

Max laminating width510mm

Max laminating length1075mm (extension table fitted)

Warm up time10 minutes

Temperature range0-140°C

Electrical requirements240v 50/60hz

Machine weight

Matrix 530P Laminator 240kg,

DimensionsMatrix L180mm D900mm H1400mm.
