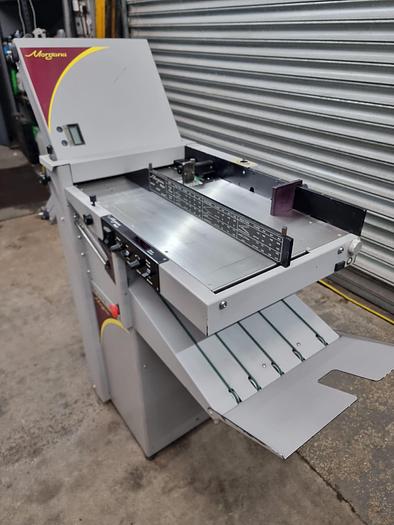

Morgana Major Digital Paper folder with perf
Morgana Major Digital Paper folder with perf
£3,000 (GBP)
Location:Lancaster, United Kingdom
Description
The Morgana Major has been designed small and compact, it is beaming with fantastic features that have been specially picked to be included within this machine. What makes this machine stand out from the rest is its ability to change from fold to fold, size to size within seconds.
The machine has innovative material that can accurately grip digital print work or high gloss paper!

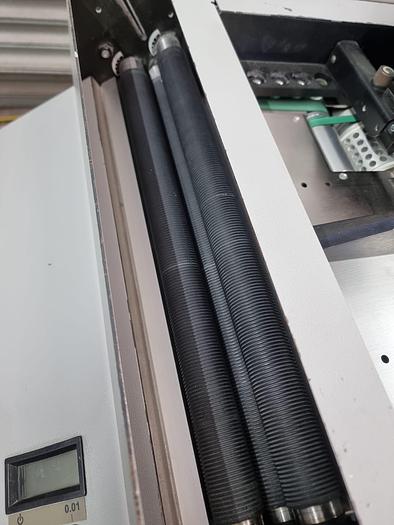

No adjustment necessary, the fold rollers can handle a variety of stock without anything being changed.
If you require a sturdy, reliable folder then this machine is the perfect machine for you!
Contact us today to discuss the Morgana Major Digital Folder
Powerful suction feeder handles a wide range of paper weights
Side lay alignment of the sheets, prior to folding
Low pressure suction chamber to control curled paper before it enters the fold rollers

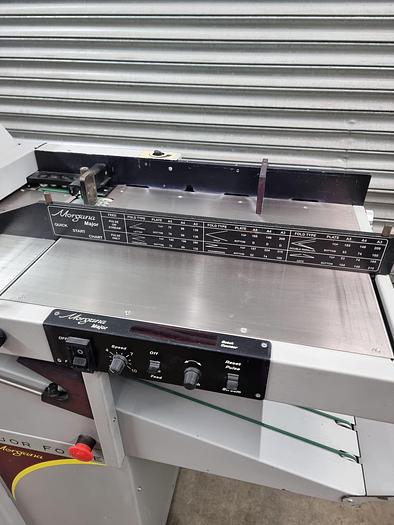

Fully enclosed fold plates with ‘dial-a-fold’ and LED display, fitted with anti-static brushes, skew and micro adjustments
Variable speed
Long delivery belt stacker
Double sheet, anti jam detector
Speed: 14,500 to 27,000 per hour
Dimensions: L 46" x W 19.5" x H 39"
Electrical Requirements: 220v 60hz
Product Weight: 301 lbs
At Promotional Printing Machinery Limited we provide a quick turnaround, which is usually 2-3 days once payment is received depending on the size of your order.
If you require installation we can provide one of our experienced engineers to do this for you at extra cost.
Our UK sales are shipped out using our local haulage company, the items are fully secured to wooden pallets and covered with shrink wrap film to protect them during transport.
Export machines are sealed into strong wood crates that are sourced from sustainable materials, which are collected by our shipping agent and distributed to you by either Air, Road or Sea.
We only accept payment via bank transfer or cash on collection. A VAT invoice will be supplied with the machine. PayPal payment is not accepted.
A paper folding machine is a device designed to automate the process of folding paper. It's commonly used in offices, print shops, and mailing rooms to handle large volumes of paper efficiently and accurately. Here’s a guide on how to use a paper folding machine:
### Types of Paper Folding Machines
1. **Manual Paper Folding Machines**: Require manual feeding and setting adjustments.
2. **Automatic Paper Folding Machines**: Feature automatic feeding and settings adjustments, suitable for high-volume tasks.
### Steps to Use a Paper Folding Machine
#### Using a Manual Paper Folding Machine:
1. **Setup the Machine**: Place the machine on a stable surface.
2. **Adjust the Folding Plates**: Set the folding plates to the desired fold type (e.g., half fold, tri-fold, Z-fold).
3. **Load the Paper**: Place a stack of paper in the feeding tray, aligning it properly.
4. **Feed the Paper**: Manually feed the paper into the machine if required.
5. **Fold the Paper**: Operate the machine by turning the handle or pressing the start button, depending on the model.
6. **Collect the Folded Paper**: Retrieve the folded paper from the output tray and check the folds.
#### Using an Automatic Paper Folding Machine:
1. **Power On the Machine**: Connect the machine to a power source and turn it on.
2. **Adjust Settings**: Set the desired fold type and paper size using the control panel or dials.
3. **Load the Paper**: Place a stack of paper in the automatic feeding tray, ensuring proper alignment.
4. **Start the Folding Process**: Press the start button. The machine will automatically feed, fold, and stack the paper.
5. **Collect the Folded Paper**: Retrieve the folded paper from the output tray and inspect the folds.
### Common Types of Paper Folds:
- **Half Fold**: The paper is folded in half.
- **Tri-Fold**: The paper is folded into three sections, commonly used for brochures.
- **Z-Fold**: The paper is folded in a zigzag pattern.
- **Gate Fold**: The paper is folded inward from both sides to meet in the middle.
- **Double Parallel Fold**: The paper is folded in half and then in half again in the same direction.
- **Accordion Fold**: The paper is folded in an accordion style, creating multiple panels.
### Tips for Effective Paper Folding:
- **Choose the Right Machine**: Select a machine that matches your volume and fold type requirements.
- **Adjust Properly**: Ensure folding plates and settings are correctly adjusted for the paper size and fold type.
- **Test First**: Run a test sheet to check the settings before starting a large batch.
- **Use Quality Paper**: Ensure the paper is of good quality to prevent jams and ensure clean folds.
- **Maintain the Machine**: Regularly clean and maintain the machine to ensure optimal performance.
### Safety Precautions:
- **Read the Manual**: Always refer to the user manual for specific instructions and safety guidelines.
- **Avoid Loose Clothing**: Ensure clothing and accessories do not get caught in the machine.
- **Keep Hands Clear**: Avoid placing hands near the folding area while the machine is in operation.
By following these steps and tips, you can efficiently and effectively use a paper folding machine to handle large volumes of paper folding tasks, ensuring professional and consistent results.
Specifications
Manufacturer | Morgana |
Model | Major |
Condition | Used |
Stock Number | 2584 |
