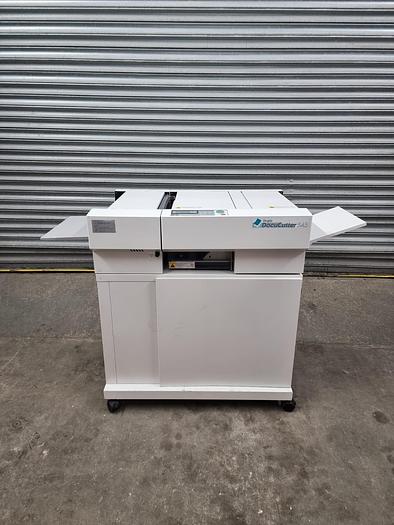

Duplo docucutter 545HC slit, cut and crease for digital printing

The Duplo Docucutter 545, a perfect slit, cut and crease finishing solution. Made for digital colour documents, the 545 can do up to 6 slits, 10 cuts and 4 creases in one swift pass. Applications such as business cards, greetings cards, invitations, brochures, posters, book covers can be performed. Precise output is guaranteed, the barcode reader and image registration mark reader ensure that. If you require professionally finished full-bleed documents, this machine is the machine for you! With capacity for 80 job memories, an LCD display and automatic image shift correction the Duplo Docucutter exceeds all expectations. Input Paper Size Minimum 210 mm wide x 210 mm long Maximum 320 mm wide x 650 mm long Input Paper Weight Minimum Nominally 150 to 300 gsm Note : lighter weights possible subject to paper curl Finished Paper Size Minimum Business card size 50mm wide x 90mm long (90mm is in feed direction) Slitters Number 5 x rotary slitting knives Slitter accuracy Programmable 0.1mm steps Tolerance +/- 0.5 mm maximum over width of 320 mm Cross Knife Trimmer Number 1 x cross knife Maximum Programmable 10 cuts Lead Edge Trim Recommended minimum 3mm Trail Edge Trim Recommended minimum 3mm Accuracy Programmable to 0.1 mm steps Tolerance +/- 0.7 mm maximum over length of 650 mm Creaser Number 1 x creasing rule across (width) paper direction Maximum Programmable 4 creases, minimum distance to first crease 90mm Accuracy Programmable to 0.1 mm steps Tolerance +/- 0.7 mm maximum over length of 650 mm Feeder Capacity 100 mm Type Air knife separation / Top feed / Belt suction Speed Maximum 1440 creases per hour A4, short edge feed, 1 crease only @ 11/minute A4, short edge feed, 1 crease plus 4 side trim @ 9/minute At Promotional Printing Machinery we offer a quick turnaround once we have received payment for your item, usually 2 - 3 working days depending on the size of your purchase. If you require installation we can...
