Horizon collator and bookletmaker

No longer available

Horizon collator and bookletmaker

£7,000 (GBP)

United Kingdom


Horizon VAC100 Collator with SPf20 and FC20 Bookletmaker and Trimmer

The Collator - The VAC100 collator works flawlessly with almost any stock. Its vacuum feed system allows for incredible results, making this collator one of the highest quality on the market, with speeds of up 8000 sets per hour. Featured on the collator is, a touch screen display panel - easy to use, any errors or jams are shown on the screen which allows you to identify and resolve quickly.

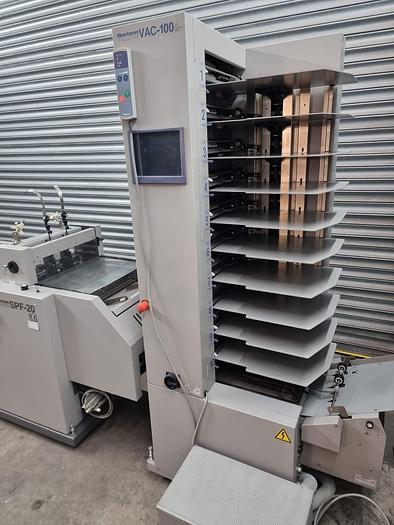

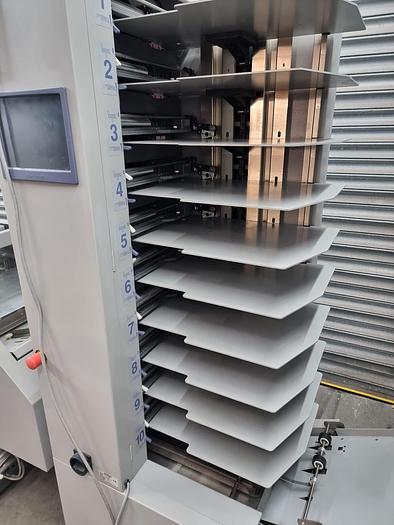

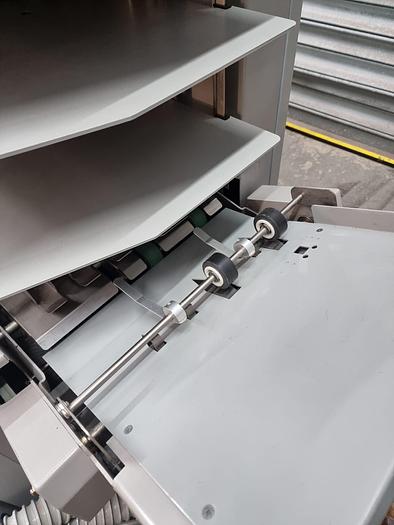

VAC100 Collator

Maximum sheet size: 350mm x 500mm

Minimum sheet size: 148 x 148mm

Sheet weight range: 60gsm to 250gsm

Bin pile height: 55mm

Production speed: Up to 8,000 sets per hour

Power Requirement/Consumption 220 , 60 HZ, 1 Phase / 1,700 W, 9 amps.

World wide transformers can be supplied

Weight/Dimensions: 639.5 lbs. / 26” L x 32” W x 77”

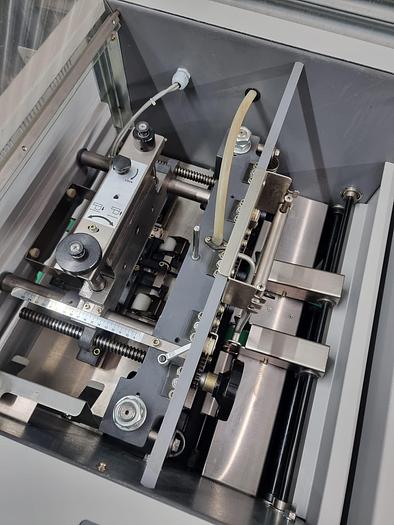

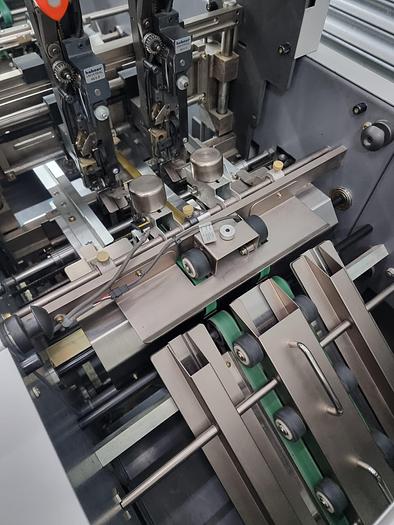

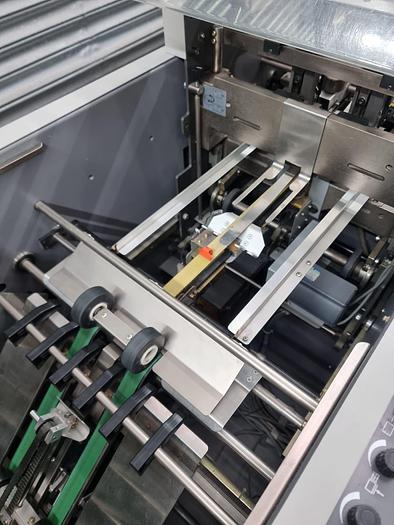

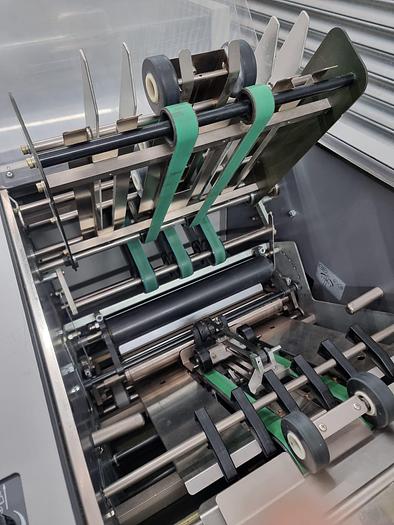

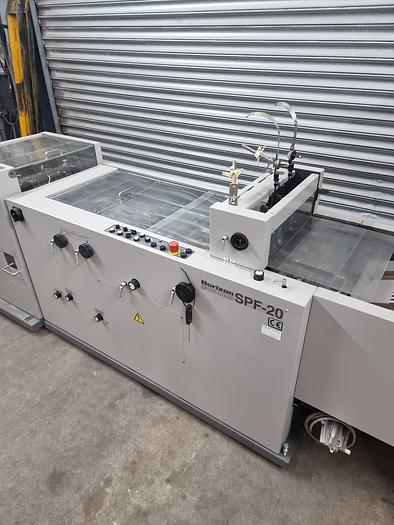

Horizon SPF-20/FC-20 heavy duty stitchfold trim with Hohner stitching heads.

Books Speed P/H: 4000 Sheet

Book Size: A4/A5/A6/CD insert finished size

Sheet Size 4.7" x 7.1" to 13.8" x 19.7"

Finish Size 3.5" x 4.7" to 9.8" x 13.8"

Stitching Wire - Standard No.25 (0.5 mm) (0.02")

Machine Weight 1,035 lb.

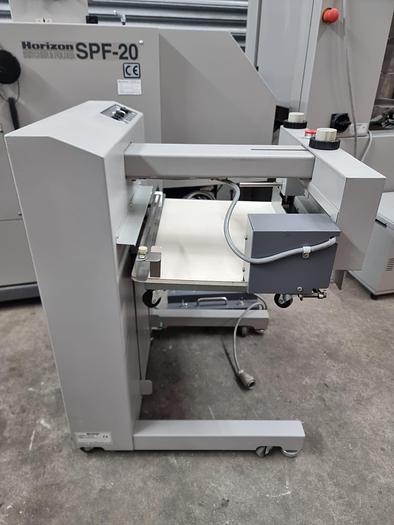

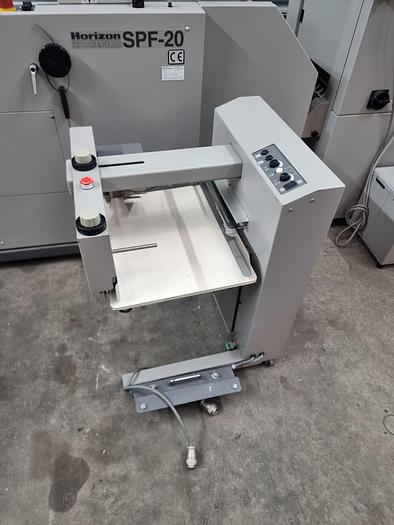

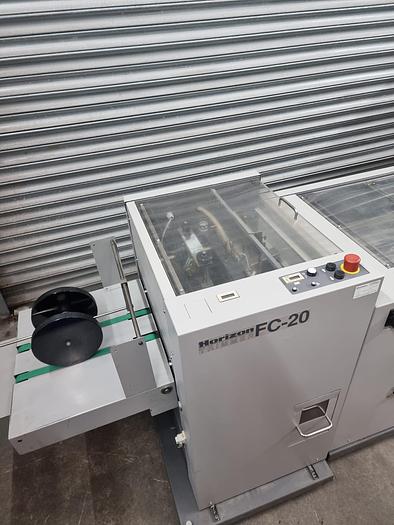

Horizon FC-20 Trimmer

Book Size (Before Trim) 3.5" x 4.7" to 9.8" x 13.8"

Finish Size 3.3" x 4.7" to 9.8" x 13.8"

Trimming Length .79" max.

Trimming Thickness .16" max

Production Speed up to 3,600 booklets/hr.

Machine Weight 507 lb

At Promotional Printing Machinery we offer a quick turnaround once we have received payment for your item, usually 2 - 3 working days UK, (other countries may vary) depending on the size of your purchase, unless otherwise agreed. If you require installation we can supply one of our experienced engineering team to do this for you at extra cost.Our UK sales are shipped out using our local haulage company, the items are fully secured to wooden pallets and sealed with film to weatherpro...


Stock Number2477
