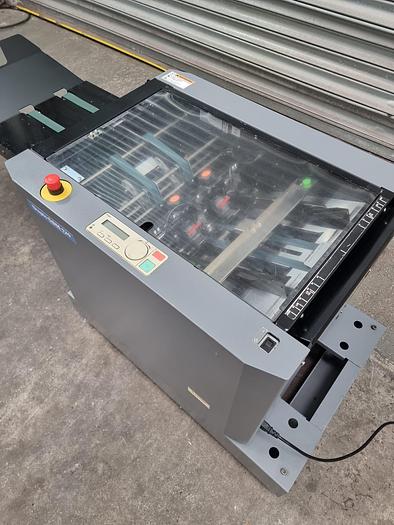

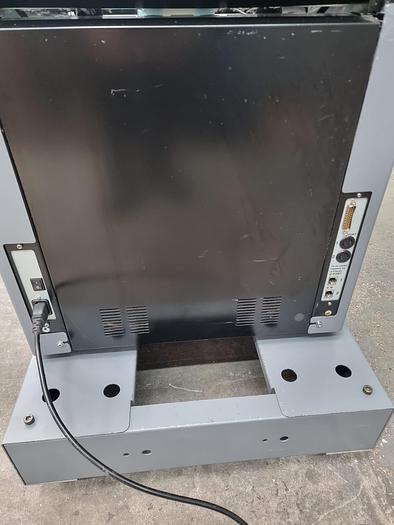

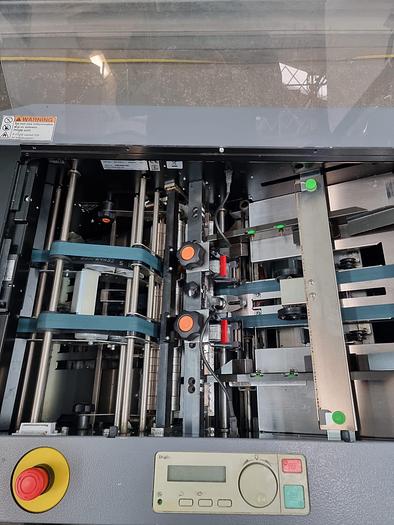

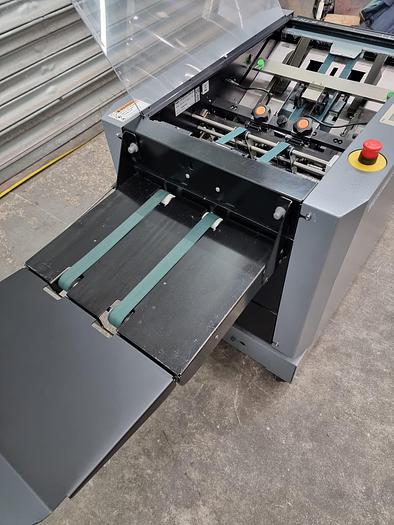

Duplo dbm120 stitch fold

Duplo dbm120 stitch fold

£1,500 (GBP)

Lancaster, United Kingdom

orWhatsApp:+44 (0) 7884 423 812


Duplo DBM-120 Bookletmaker Duplo DBM-120 Automatic Bookletmaker Features Include - Booklet capacity of up to 20 sheets (100 pages) of 20-lb. stock. - Block capacity of up to 30 sheets of 20-lb stock. - Production speeds of up to 1800 booklets per hour can be achieved. - Programmable with 10 pre-set & three custom sizes - Corner, Side or Regular Booklet Stapling - Can be used used without staple head to fold up to 20 sheets in half - Connects to the Duplo DSF-2000 Set Feeder & DBM-120T Automatic Trimmer. A4 Sheet Speed Max 120 Sheets/Min A4 Booklet Production Max 40 Books/Min A3 Booklet Production Max 30 Books/Min Typical Hourly Production 5 Sheet A4 5800 sheets (= 194 ppm) 5 Sheet A3 4500 sheets (= 300 ppm) Programmes 10 pre-set sizes / 3 custom sizes Sheet Sizes(Min) 279mm x 210mm Sheet Sizes(Max) 457mm x 320mm Booklet Sizes (Min) length 140mm (before trim) x 210mm Booklet Sizes (Max) length 229 (before trim) x width320mm Capacity (80gsm) 20 sheets (with grain) Stitch/Staple Type 2 x Staple (from 2 x 5000 staple cartridge)


Modeldbm120 Fold Stitich
Stock Number2451
