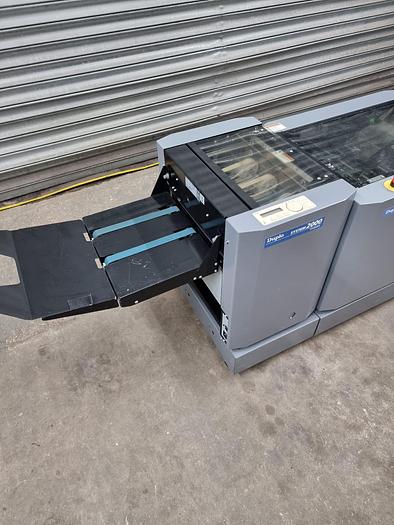

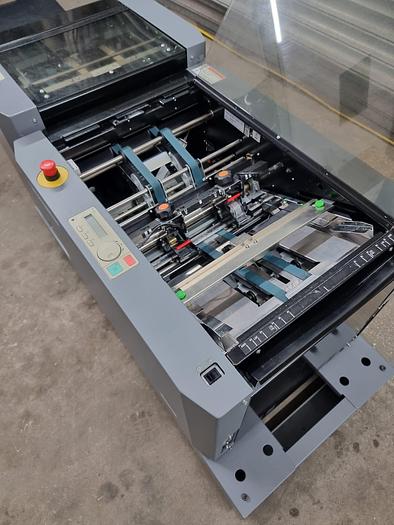

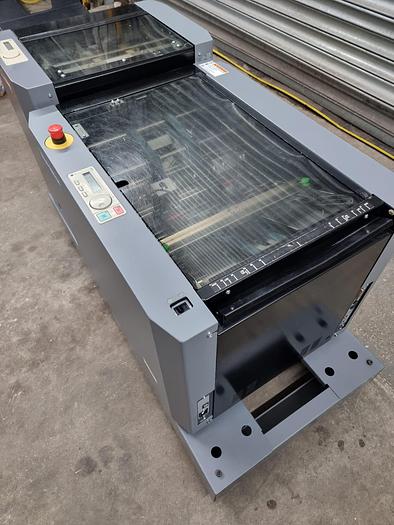

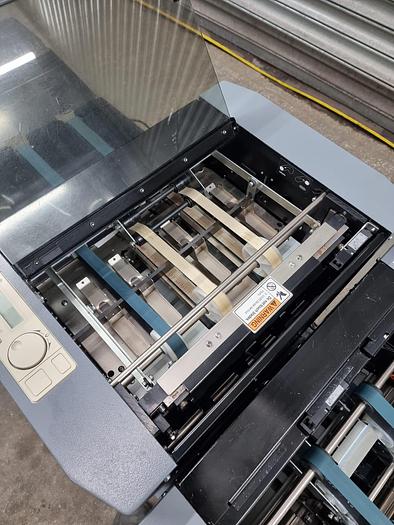

Duplo system 2000 Digital Feeder + DBM 120T

Duplo system 2000 Digital Feeder + DBM 120T

£4,500 (GBP)

Lancaster, United Kingdom

orWhatsApp:+44 (0) 7884 423 812

Description

Duplo DSF 2000 Document Sheet Feeder with Bookletmaker and Trimmer The Duplo Digital System 2000 is a mid-volume booklet maker designed to provide a digital printer with a ready to go means of producing booklets from digitally printed pages. There are options for the type of finish required with optical mark recognition to trigger the bookletmaking sequence. For example, the feeder can take pre-printed litho covers to wrap around variable content inside pages produced on a digital press. Inline trimming gives a professional finish to the completed products. - Saddle stitch and fold, fold only, corner staple or block staple modes - In-put the amount of sheets per set and the DSF 2000 will automatically pick, staple, fold and trim them. - Up to 20 sheets per booklet - Optical mark recognition - Fully automatic setup - Rejection tray - Up to 20 sheets per booklet - Booklet making - Sheet Size (Min./Max.) 10.98” x 8.27” to 17.72” x 12.60” Duplo DBM-120T Automatic Trimmer Features Include - Trim capacity of up to 20 sheets (100 pages) of 20-lb. stock. - Production speeds of up to 2400 booklets per hour can be achieved. - Trim margin of up to 0.79" - Min/Max Booklet Size - 3.94" x 7.87" / 8.86" x 12.60" - Connects to the Duplo DSF-2000 Set Feeder & DBM-120 Bookletmaker. Duplo DBM-120 Automatic Bookletmaker Features Include - Booklet capacity of up to 20 sheets (100 pages) of 20-lb. stock. - Block capacity of up to 30 sheets of 20-lb stock. - Production speeds of up to 1800 booklets per hour can be achieved. - Programmable with 10 pre-set & three custom sizes - Corner, Side or Regular Booklet Stapling - Can be used used without staple head to fold up to 20 sheets in half - Connects to the Duplo DSF-2000 Set Feeder & DBM-120T Automatic Trimmer.

Specifications

ManufacturerDuplo
ConditionUsed
Stock Number1135
