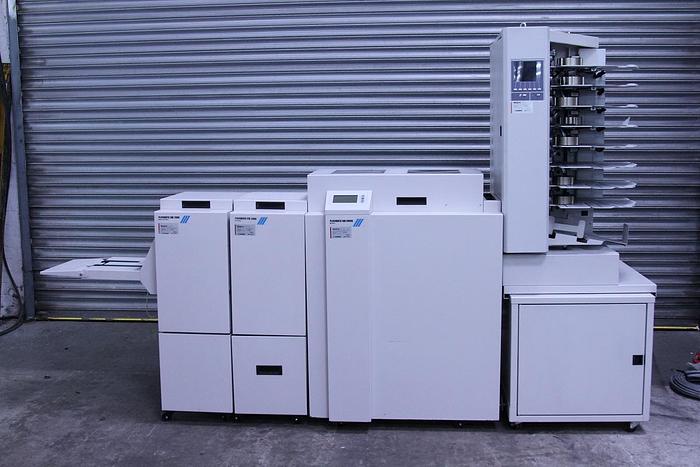

Morgana System BM2000 Collator, Bookletmaker, Trimmer, Squarefold (#1038)

Morgana System BM2000 Collator, Bookletmaker, Trimmer, Squarefold (#1038)

£12,000 (GBP)

United Kingdom

orWhatsApp:+44 (0) 7884 423 812

Description

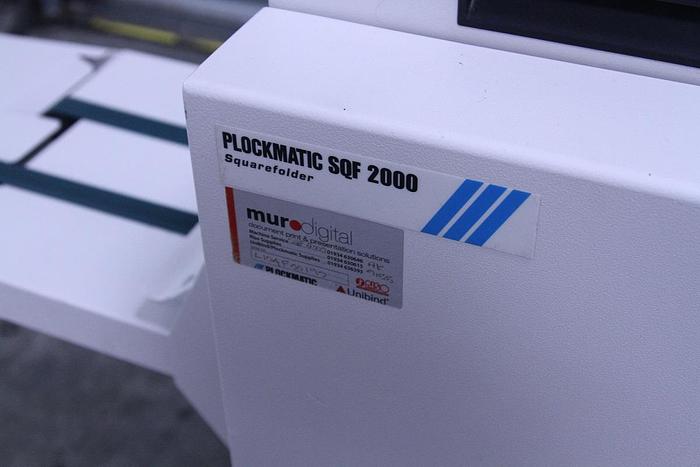

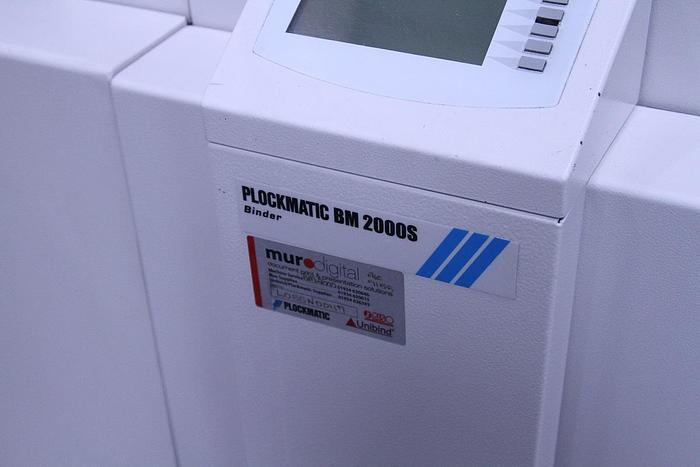

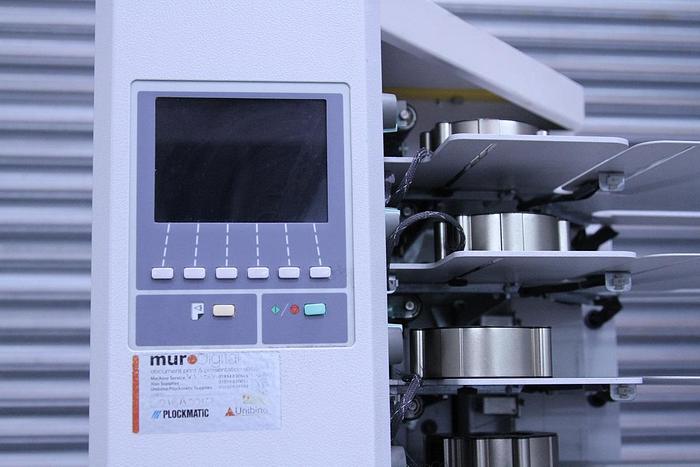

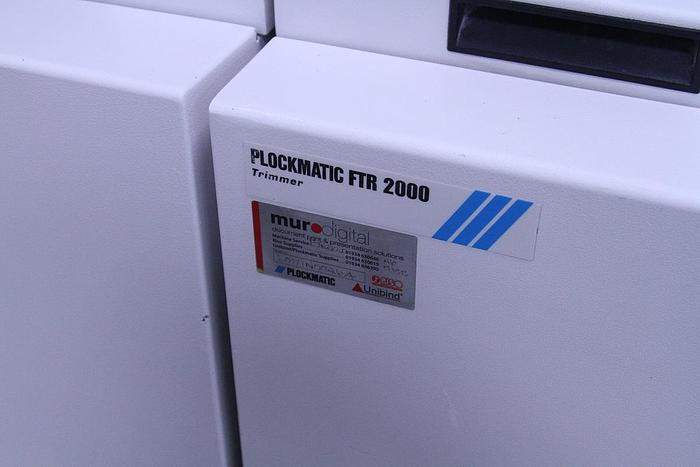

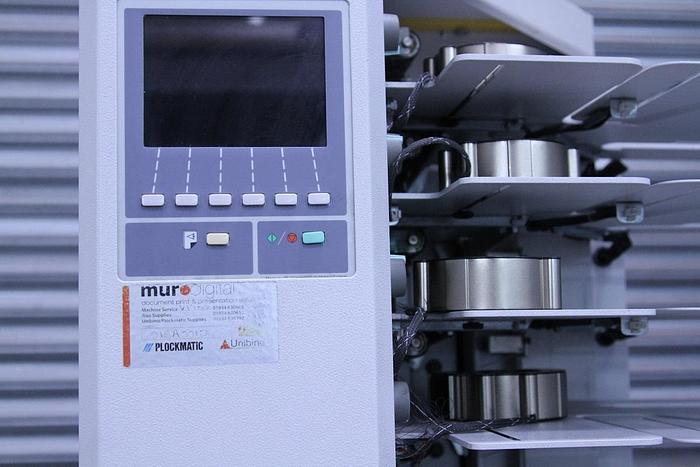

• 510 Collator/ Feeder • BM2000 Booklet Maker • FTR2000 Trimmer • SQF2000 Squarefolder unit for flat spine booklets The 510 series of feeders/collators are based on a standard 10 station, high capacity bin tower structure with centre registration. The units equipped with feeder mode are ideally suited to customers who have a range of digital and litho printed work, some of which may need collated and some which may come pre-collated from a digital engine. There may also be a need to feed digitally printed work from black and white devices, combining coloured pages or covers. The 510 series can feed up to 4000 sets in collator mode, or up to 7000 sheets per hour in feeder mode, offering maximum flexibility for a wide range of work. The machine is controlled from a large LCD display with easy to understand menus. Depending on which of the 510 models you have, start by choosing feeder or collator mode, select type of finishing, set air flow if applicable, hit the proof button and you are ready to go. Save frequent jobs in the memory and check statistics about jobs previously run. Unlike all other friction feed systems on the market, Morgana’s new 510 AC/ACF models offer a unique air separation system. Each bin has fans blowing air into the stack from two sides that radically improves the feeding of statically charged or normally hard to feed stock. The air separation in the 510 Series sets new standard in feeding, ideal for digitally printed media. The booklet making section can be supplied with heavy duty stitching heads for up to 50,000 stitches from one wire spool, or with stapling heads which can be loaded with 5000 staple cassettes. A fore-edge trimmer comes as standard to give clean finish to the booklets. An optional Morgana Squarefold can be added to the system to produce squared spine flat books which give the effect of a perfect bound finish. Key product features: • Air assist dual bin feeder unit • up to 540mm loading capactiy • Feed pre-collated sets from digital devices • High quality stapling head or stitching head versions available • 30 x 80gsm sheets, booklets up to 120 pages • Up to 1800 sets per hour • High quality front edge trimmer unit No. of bins 10 Bin capacity 28mm Sheet size, max 320 x 457mm Sheet size, min 120 x 210 mm Paper weight, max 250 gsm Paper weight, min 50 gsm Collating speed Up to 4000 sets/hour Feed speed (CF510/ACF510) Up to 10,000 sheets/hour Centre registration Yes Air separation Yes, on AC and ACF models Error detection Double feed, misfeed, empty bin, paper jam and stacker full Receiving tray Offset / straight stacking Dimensions incl. base, H x W x D 1925 x 600 x 700 mm Weight 108 kg BM 2000/2000S Booklet Maker Capacity 30 sheets of 80 gsm Speed Up to 1800 sets/hour Sheet size max 320 x 470 mm Sheet size min 120 x 210 mm Paper weight max 300 gsm Paper weight min 60 gsm Stapling modes Saddle, edge and corner stapling Stapling heads (BM2000) 2 Stitching heads (BM2000S) 2 Job saving Yes, 10 jobs Dimensions incl. base and belt stacker, H x W x D 1135 x 1520 x 680 mm Weight 161 kg FTR 2000 Trimmer Capacity 30 sheets of 80 gsm (20lb. bond) Max booklet length, max trimming 220 mm Min booklet length, max trimming 120 mm Max booklet length, by pass 235 mm Min booklet length, by pass 105 mm Booklet width, max 320 mm Booklet width, min 120 mm Speed Up to 1800 sets/hour Trim length Up to 15 mm Dimensions incl. base, H x W x D 1100 x 350 x 595 mm Weight 83 kg SQF 2000 Squarefolder Capacity 30 sheets of 80 gsm Booklet length, max 228 mm Booklet length, min 105 mm Booklet width, max 320 mm Booklet width, min 120 mm Speed Up to 1800 sets/hour Dimensions incl. base, H x W x D 1100 x 350 x 595 mm Weight 60 kg At Print and FInish we offer a quick turnaround once we have received payment for your item, usually 2 - 3 working days depending on the size of your purchase. If you require installation we can supply one of our experienced engineering team to do this for you at extra cost. Our UK sales are shipped out using our local haulage company, the items are fully secured to wooden pallets and sealed with film to weatherproof them during transport. We are set up to offer worldwide shipment for the print industry, so no matter the size of your order, we will get it to you on time and on budget. Machines are sealed into strong wood crates that are sourced from sustainable materials, which are then collecting by our shipping agent and distributed to you by either Air or Sea, depending on your preference

Specifications

ManufacturerMorgana
ModelBM2000
ConditionUsed
Stock Number2345
