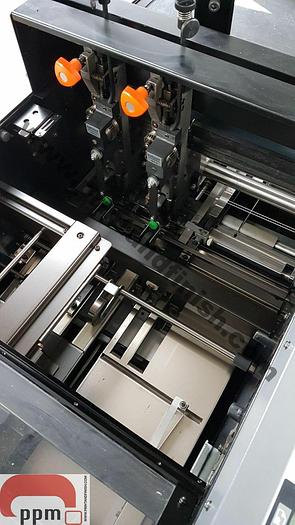

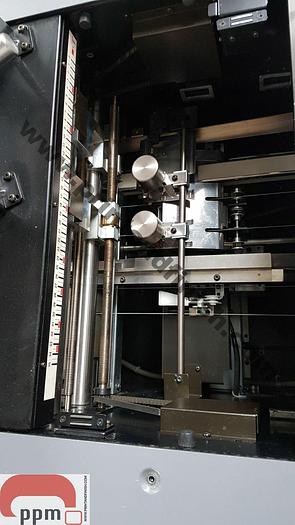

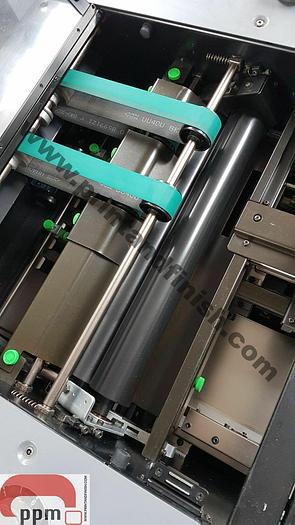

Duplo 4000 Booklet Maker & Trimmer System with Digital Feeder

Duplo 4000 Booklet Maker & Trimmer System with Digital Feeder

Digital Sheet Feeder DSF-2000 - Paper thickness 60 - 300 g/m² - Suction tape feeder

- Min. format: 148 x 210 mm - Pre-piling height main station: 200 mm - Pre-piling height cover station: 60 mm - Envelope- double - and missing sheet control - 2 Station Trimmer - Trimming Mechanism: Upper and lower shearing action - Booklet Sizes (Min./Max.): 4.73” x 3.35” to 14’ x 10” - Trimmed Booklet Sizes (Min./Max.):4.72” x 2.87” to 14” x 10” - Trimming Margin: Up to 2.95” - Cutting Thickness: Up to 50 sheets - Speed: Up to 4,200 sets per hour* Booklet Maker CORNER/SIDE/TOP STITCHING APPLICATION - Sheet Size (Min./Max.): 4.73” x 5.51” to 13.82” x 14.41” - Paper Capacity: Up to 30 sheets - Speed: Up to 4,200 sets per hour* - Detection: Jam and misfeed - Number of Stitcher Heads:1-4 (2 standard) Hohner heads - Stitch Positions: Saddle, corner, side, none (fold only) - Programmable Memory Settings:8 - Automatic Functions: Stitcher heads, back jogger, side guides, - Stitch stopper, fold stopper and fold-back stopper positions

At Promotional Printing Machinery Limited we provide a quick turnaround, which is usually 2-3 days once payment is received depending on the size of your order.

If you require installation we can provide one of our experienced engineers to do this for you at extra cost.

Our UK sales are shipped out using our local haulage company, the items are fully secured to wooden pallets and covered with shrink wrap film to protect them during transport.

Export machines are sealed into strong wood crates that are sourced from sustainable materials, which are collected by our shipping agent and distributed to you by either Air, Road or Sea.

We only accept payment via bank transfer or cash on collection. A VAT invoice will be supplied with the machine. PayPal payment is not accepted.
