Morgana FRN

Morgana FRN

£1,750 Excluding VAT

Lancaster, United Kingdom

orWhatsApp:+44 (0) 7884 423 812

Description

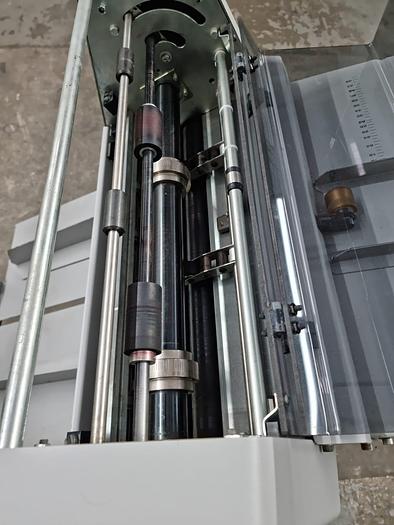

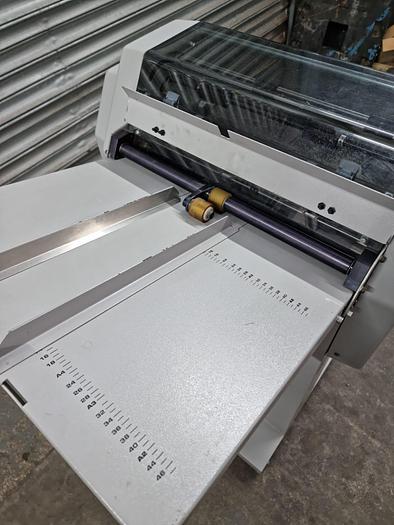

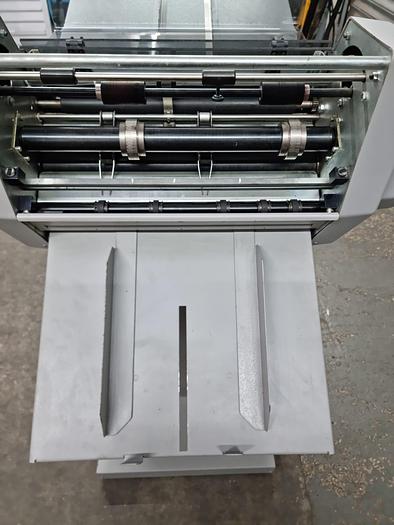

Morgana FRN Numbering Perforating & Scoring Machine


All Morgana numbering machines use rotary numbering action. The operating principles are similar to those used on litho presses. ‘Point contact’ ensures superb quality on single sheets and unmatched definition when crashing through multi-part sets. Simple adjustment to the platen pressure compensates for varying stock thicknesses. Morgana numberers feature adjustable numbering position whilst the machines are in operation. Numbering, perforating, scoring or slitting can be accomplished in ONE pass through the machine and without the sheets stopping.


OVERALL LENGTH: Working 900mm / Stored 500mm

WIDTH: 780mm

HEIGHT: 1110mm

WEIGHT: 95kgs

POWER REQUIREMENTS: 220v-50Hz

MAXIMUM RUNNING SPEEDS: 5100 SPH

MAXIMUM NUMBER OF HEADS: 4

MAXIMUM RECOMMENDED SHEET SIZE: Length 460mm Width 460mm

MINIMUM SHEET SIZE: Length 210mm Width 125mm

RECOMMENDED STOCK THICKNESS: Maximum 6 part carbonless Minimum 45gsm/2

MAXIMUM SPACING OF HEADS ON SAME COLLAR WITH FIRST NUMBER PRINTED ON HEAD OF SHEET: Parallel 365mm Convex 354mm

MINIMUM SPACING OF HEADS ON SAME COLLAR (RADIAL SPACING): Parallel 50.0mm Convex 73.5mm

MINIMUM SPACING OF ADJACENT HEADS: Parallel 62mm Convex 48mm


At Promotional Printing Machinery Limited we provide a quick turnaround, which is usually 2-3 days once payment is received depending on the size of your order.


If you require installation we can provide one of our experienced engineers to do this for you at extra cost.


Our UK sales are shipped out using our local haulage company, the items are fully secured to wooden pallets and covered with shrink wrap film to protect them during transport.


Export machines are sealed into strong wood crates that are sourced from sustainable materials, which are collected by our shipping agent and distributed to you by either Air, Road or Sea.


We only accept payment via bank transfer or cash on collection. A VAT invoice will be supplied with the machine. PayPal payment is not accepted.

Specifications

ManufacturerMorgana
ModelFRN
ConditionUsed
Stock Number2356
