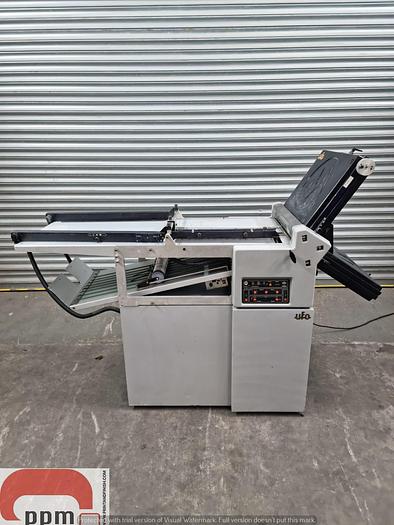

MORGANA UFO 1 FOLDER

The popular Morgana UFO1 Folding Machine is easy to set up and will fold formats up to SRA 2. Suction feed with on the run loading for high productivity. Each fold plate measurement is easily visible and quick to change saving time on job changes. Complete with batch counter.

Technical Description

Suction fed 2 plate folder

Variable speed rollers and stream delivery

Caliper roller settings

Quick and easy changeover of jobs

Batch counter

POWER REQUIREMENT – 1ph

MAXIMUM SPEED A4 S.P.H. 30,000

MAXIMUM SHEET SIZE Length 640mm Width 457mm

MINIMUM SHEET SIZE Length 150mm Width 120mm

MAXIMUM PAPER WEIGHT 240gsm

MINIMUM PAPER WEIGHT 45gsm

Overall Dimensions not including cross fold unit

Length 1910mm

Width 785mm

Height 1460mm

Weight 185kgs

At Promotional Printing Machinery Limited we provide a quick turnaround, which is usually 2-3 days once payment is received depending on the size of your order.

If you require installation we can provide one of our experienced engineers to do this for you at extra cost.

Our UK sales are shipped out using our local haulage company, the items are fully secured to wooden pallets and covered with shrink wrap film to protect them during transport.

Export machines are sealed into strong wood crates that are sourced from sustainable materials, which are collected by our shipping agent and distributed to you by either Air, Road or Sea.

We only accept payment via bank transfer or cash on collection. A VAT invoice will be supplied with the machine. PayPal payment is not accepted.
